Specifications: Volkswagen Passat Variant (B5.5) 1.9 TDI (130 Hp) 4MOTION 2000, 2001, 2002, 2003, 2004, 2005

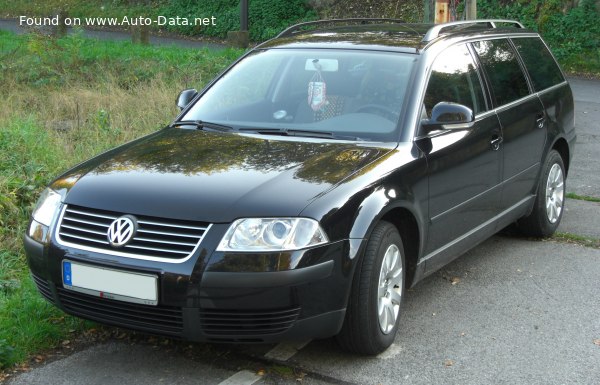

2000 Volkswagen Passat Variant (B5.5) - Photo 1

Volkswagen Passat Variant (B5.5) 1.9 TDI (130 Hp) 4MOTION – Full specifications
General information
Brand Volkswagen
Model Passat
Generation Passat Variant (B5.5)
Modification (Engine) 1.9 TDI (130 Hp) 4MOTION
Start of production 2000 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 8.6 l/100 km
27.4 US mpg
32.8 UK mpg
11.6 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.5 l/100 km
42.8 US mpg
51.4 UK mpg
18.2 km/l
Fuel consumption (economy) – combined (NEDC) 6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l
CO2 emissions (NEDC) 178 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.7 sec
Acceleration 0 – 62 mph 10.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.2 sec
Maximum speed 197 km/h
122.41 mph
Emission standard Euro 3
Weight-to-power ratio 13.5 kg/Hp, 74.3 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 177.2 Nm/tonne
Engine specs
Power 130 Hp @ 4000 rpm.
Power per litre 68.6 Hp/l
Torque 310 Nm @ 1900 rpm.
228.64 lb.-ft. @ 1900 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AVF
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 19:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1749 kg
3855.88 lbs.
Max. weight 2160 kg
4761.98 lbs.
Max load 411 kg
906.1 lbs.
Trunk (boot) space – minimum 450 l
15.89 cu. ft.
Trunk (boot) space – maximum 1545 l
54.56 cu. ft.
Fuel tank capacity 62 l
16.38 US gal | 13.64 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1700 kg
3747.86 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 85 kg
187.39 lbs.
Dimensions
Length 4682 mm
184.33 in.
Width 1746 mm
68.74 in.
Height 1498 mm
58.98 in.
Wheelbase 2702 mm
106.38 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent multi-link suspension, Transverse stabilizer
Rear suspension Double wishbone, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 6J x 15
