Specifications: Volkswagen Passat Variant (B8, facelift 2019) 2.0 TDI (190 Hp) DSG 2019, 2020

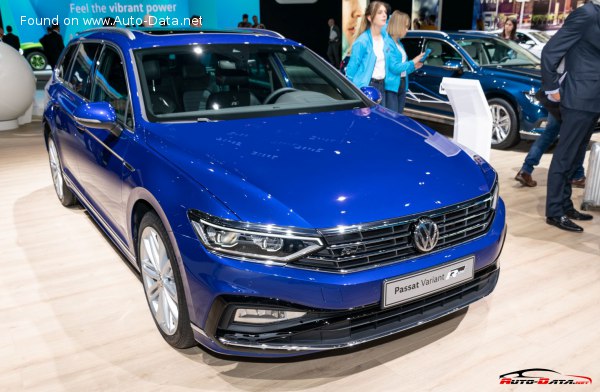

2020 Volkswagen Passat Variant (B8, facelift 2019) - Photo 1

Volkswagen Passat Variant (B8, facelift 2019) 2.0 TDI (190 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Passat
Generation Passat Variant (B8, facelift 2019)
Modification (Engine) 2.0 TDI (190 Hp) DSG
Start of production 2019 year
End of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l
Fuel consumption (economy) – extra urban 4.2 l/100 km
56 US mpg
67.3 UK mpg
23.8 km/l
Fuel consumption (economy) – combined 4.6 l/100 km
51.1 US mpg
61.4 UK mpg
21.7 km/l
CO2 emissions 120 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 7.9 sec
Acceleration 0 – 62 mph 7.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.5 sec
Maximum speed 232 km/h
144.16 mph
Emission standard Euro 6
Weight-to-power ratio 8 kg/Hp, 124.6 Hp/tonne
Weight-to-torque ratio 3.8 kg/Nm, 262.3 Nm/tonne
Engine specs
Power 190 Hp
Power per litre 96.5 Hp/l
Torque 400 Nm @ 1900-3300 rpm.
295.02 lb.-ft. @ 1900-3300 rpm.
Engine layout Front, Transverse
Engine Model/Code DDAA, DFCA, DFHA
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1525 kg
3362.05 lbs.
Max. weight 2190 kg
4828.12 lbs.
Max load 665 kg
1466.07 lbs.
Trunk (boot) space – minimum 650 l
22.95 cu. ft.
Trunk (boot) space – maximum 1780 l
62.86 cu. ft.
Fuel tank capacity 66 l
17.44 US gal | 14.52 UK gal
AdBlue tank 16 l
4.23 US gal | 3.52 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4773-4889 mm
187.91 – 192.48 in.
Width 1832 mm
72.13 in.
Width including mirrors 2083 mm
82.01 in.
Height 1516 mm
59.69 in.
Wheelbase 2786 mm
109.69 in.
Front track 1578-1586 mm
62.13 – 62.44 in.
Rear (Back) track 1564-1572 mm
61.57 – 61.89 in.
Minimum turning circle (turning diameter) 11.7 m
38.39 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/60 R16; 215/55 R17
Wheel rims size 6.5J x 16; 7J x 17
