Specifications: Volkswagen Passat Variant (B9) 2.0 TDI (150 Hp) DSG 2023, 2024, 2025

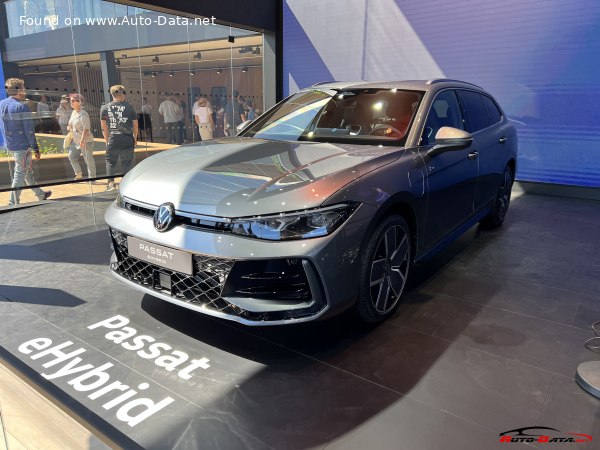

2024 Volkswagen Passat Variant (B9) - Photo 1

Volkswagen Passat Variant (B9) 2.0 TDI (150 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Passat
Generation Passat Variant (B9)
Modification (Engine) 2.0 TDI (150 Hp) DSG
Start of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 7.1 l/100 km
33.1 US mpg
39.8 UK mpg
14.1 km/l
Fuel consumption at Medium speed (WLTP) 5 l/100 km
47 US mpg
56.5 UK mpg
20 km/l
Fuel consumption at high speed (WLTP) 4.2 l/100 km
56 US mpg
67.3 UK mpg
23.8 km/l
Fuel consumption at very high speed (WLTP) 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Combined fuel consumption (WLTP) 4.9 l/100 km
48 US mpg
57.6 UK mpg
20.4 km/l
CO2 emissions (WLTP) 129 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.3 sec
Acceleration 0 – 62 mph 9.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.8 sec
Maximum speed 223 km/h
138.57 mph
Emission standard Euro 6 EA
Weight-to-power ratio 11.2 kg/Hp, 89.4 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 214.5 Nm/tonne
Engine specs
Power 150 Hp
Power per litre 76.2 Hp/l
Torque 360 Nm @ 1600-2750 rpm.
265.52 lb.-ft. @ 1600-2750 rpm.
Engine layout Front, Transverse
Engine Model/Code EA288 evo / DXPA
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1678 kg
3699.36 lbs.
Max. weight 2240 kg
4938.35 lbs.
Max load 562 kg
1239 lbs.
Trunk (boot) space – minimum 690 l
24.37 cu. ft.
Trunk (boot) space – maximum 1920 l
67.8 cu. ft.
Fuel tank capacity 66 l
17.44 US gal | 14.52 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 2200 kg
4850.17 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4917 mm
193.58 in.
Width 1849 mm
72.8 in.
Width including mirrors 2090 mm
82.28 in.
Height 1497 mm
58.94 in.
Wheelbase 2841 mm
111.85 in.
Front track 1577-1585 mm
62.09 – 62.4 in.
Rear (Back) track 1560-1574 mm
61.42 – 61.97 in.
Front overhang 957 mm
37.68 in.
Rear overhang 1119 mm
44.06 in.
Drag coefficient (Cd) 0.25
Minimum turning circle (turning diameter) 12 m
39.37 ft.
Approach angle 12.8°
Departure angle 11.7°
Ramp-over (brakeover) angle 10.5°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Front brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/60 R16; 215/55 R17; 235/45 R18
Wheel rims size 7J x 16; 7.5J x 17; 8J x 18
