Specifications: Volkswagen Phaeton Long 5.0 V10 TDI (313 Hp) 4Motion Automatic 2005, 2006

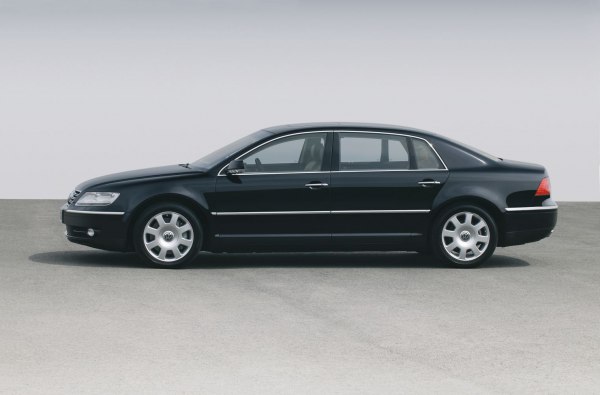

2005 Volkswagen Phaeton Long - Photo 1

Volkswagen Phaeton Long 5.0 V10 TDI (313 Hp) 4Motion Automatic – Full specifications
General information
Brand Volkswagen
Model Phaeton
Generation Phaeton Long
Modification (Engine) 5.0 V10 TDI (313 Hp) 4Motion Automatic
Start of production 2005 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 16.5 l/100 km
14.3 US mpg
17.1 UK mpg
6.1 km/l
Fuel consumption (economy) – extra urban 8.5 l/100 km
27.7 US mpg
33.2 UK mpg
11.8 km/l
Fuel consumption (economy) – combined 11.4 l/100 km
20.6 US mpg
24.8 UK mpg
8.8 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 6.9 sec
Acceleration 0 – 62 mph 6.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.6 sec
Maximum speed 250 km/h
155.34 mph
Weight-to-power ratio 7.9 kg/Hp, 127.1 Hp/tonne
Weight-to-torque ratio 3.3 kg/Nm, 304.6 Nm/tonne
Engine specs
Power 313 Hp @ 3750 rpm.
Power per litre 63.6 Hp/l
Torque 750 Nm @ 2000 rpm.
553.17 lb.-ft. @ 2000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AJS
Engine displacement 4921 cm3
300.3 cu. in.
Number of cylinders 10
Engine configuration V-engine
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 18:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Twin-Turbo, Intercooler
Engine oil capacity 10 l
10.57 US qt | 8.8 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 13 l
13.74 US qt | 11.44 UK qt

Space, Volume and weights
Kerb Weight 2462 kg
5427.78 lbs.
Max. weight 3010 kg
6635.91 lbs.
Max load 548 kg
1208.13 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Fuel tank capacity 90 l
23.78 US gal | 19.8 UK gal
Dimensions
Length 5175 mm
203.74 in.
Width 1903 mm
74.92 in.
Height 1450 mm
57.09 in.
Wheelbase 3001 mm
118.15 in.
Front track 1628 mm
64.09 in.
Rear (Back) track 1612 mm
63.46 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Air suspension
Rear suspension Air suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R18 Y
Wheel rims size 7.5J x 18
