Specifications: Volkswagen Phaeton Long (facelift 2010) 3.0 V6 FSI (250 Hp) 4MOTION Tiptronic 2013, 2014, 2015, 2016

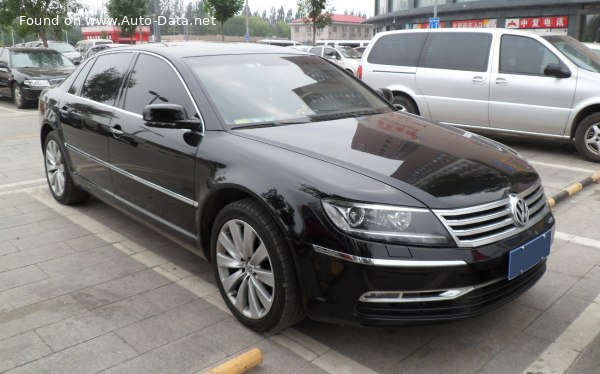

2010 Volkswagen Phaeton Long (facelift 2010) - Photo 1

Volkswagen Phaeton Long (facelift 2010) 3.0 V6 FSI (250 Hp) 4MOTION Tiptronic – Full specifications
General information
Brand Volkswagen
Model Phaeton
Generation Phaeton Long (facelift 2010)
Modification (Engine) 3.0 V6 FSI (250 Hp) 4MOTION Tiptronic
Start of production 2013 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 11.6 l/100 km
20.3 US mpg
24.4 UK mpg
8.6 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 240 km/h
149.13 mph
Emission standard Euro 5
Weight-to-power ratio 8.8 kg/Hp, 114.3 Hp/tonne
Weight-to-torque ratio 7.1 kg/Nm, 141.7 Nm/tonne
Engine specs
Power 250 Hp @ 6400 rpm.
Power per litre 84 Hp/l
Torque 310 Nm @ 3500 rpm.
228.64 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA390 / CPFA
Engine displacement 2975 cm3
181.55 cu. in.
Number of cylinders 6
Engine configuration VR-engine
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 89.5 mm
3.52 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 6.2 l
6.55 US qt | 5.46 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 2188 kg
4823.71 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Fuel tank capacity 90 l
23.78 US gal | 19.8 UK gal
Dimensions
Length 5179 mm
203.9 in.
Width 1903 mm
74.92 in.
Height 1450 mm
57.09 in.
Wheelbase 3001 mm
118.15 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission Tiptronic
Front suspension Double wishbone, Transverse stabilizer, Air suspension
Rear suspension Independent on trapezoidal lever, Air suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 235/55 R17; 235/50 R18; 255/45 R18; 245/45 R19; 255/40 R19; 275/35 R20
Wheel rims size 7.5J x 17; 7.5J x 18; 8.5J x 18; 8.5J x 19; 9J x 19; 9J x 20
