Specifications: Volkswagen Polo III Variant 1.4 (54 Hp) 1994, 1995, 1996, 1997, 1998, 1999, 2000

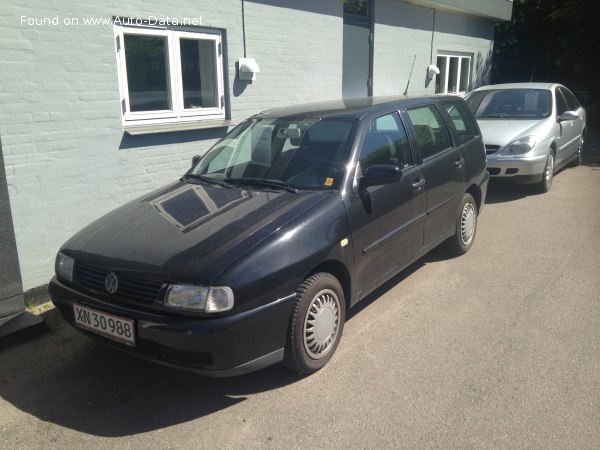

1994 Volkswagen Polo III Variant - Photo 1

Volkswagen Polo III Variant 1.4 (54 Hp) – Full specifications
General information
Brand Volkswagen
Model Polo
Generation Polo III Variant
Modification (Engine) 1.4 (54 Hp)
Start of production 1994 year
End of production 2000 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.9 l/100 km
26.4 US mpg
31.7 UK mpg
11.2 km/l
Fuel consumption (economy) – extra urban 5.4 l/100 km
43.6 US mpg
52.3 UK mpg
18.5 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 16 sec
Acceleration 0 – 62 mph 16 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 15.2 sec
Maximum speed 155 km/h
96.31 mph
Weight-to-power ratio 19.1 kg/Hp, 52.4 Hp/tonne
Weight-to-torque ratio 9.4 kg/Nm, 106.8 Nm/tonne
Engine specs
Power 54 Hp @ 3000 rpm.
Power per litre 38.8 Hp/l
Torque 110 Nm @ 2000 rpm.
81.13 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code ANX
Engine displacement 1390 cm3
84.82 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76.5 mm
3.01 in.
Piston Stroke 75.6 mm
2.98 in.
Compression ratio 10.2:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.4 l
3.59 US qt | 2.99 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.6 l
5.92 US qt | 4.93 UK qt

Space, Volume and weights
Kerb Weight 1030 kg
2270.76 lbs.
Max. weight 1490 kg
3284.89 lbs.
Max load 460 kg
1014.13 lbs.
Trunk (boot) space – minimum 390 l
13.77 cu. ft.
Trunk (boot) space – maximum 1250 l
44.14 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 4137 mm
162.87 in.
Width 1640 mm
64.57 in.
Height 1433 mm
56.42 in.
Wheelbase 2444 mm
96.22 in.
Front track 1429 mm
56.26 in.
Rear (Back) track 1384 mm
54.49 in.
Ride height (ground clearance) 140 mm
5.51 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Wishbone
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/60 R14
Wheel rims size 14
