Specifications: Volkswagen Polo IV (9N, facelift 2005) 1.4 (80 Hp) 5-d 2005, 2006, 2007, 2008, 2009

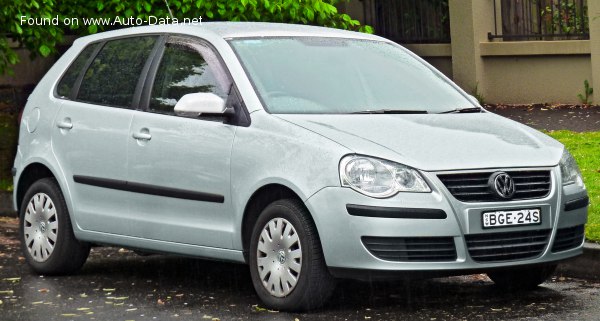

2005 Volkswagen Polo IV (9N, facelift 2005) - Photo 1

Volkswagen Polo IV (9N, facelift 2005) 1.4 (80 Hp) 5-d – Full specifications
General information
Brand Volkswagen
Model Polo
Generation Polo IV (9N, facelift 2005)
Modification (Engine) 1.4 (80 Hp) 5-d
Start of production 2005 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.3 l/100 km
28.3 US mpg
34 UK mpg
12 km/l
Fuel consumption (economy) – extra urban 5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
Fuel consumption (economy) – combined 6.3 l/100 km
37.3 US mpg
44.8 UK mpg
15.9 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.2 sec
Acceleration 0 – 62 mph 12.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.6 sec
Maximum speed 175 km/h
108.74 mph
Weight-to-power ratio 13.7 kg/Hp, 73.1 Hp/tonne
Weight-to-torque ratio 8.3 kg/Nm, 120.5 Nm/tonne
Engine specs
Power 80 Hp @ 5000 rpm.
Power per litre 57.6 Hp/l
Torque 132 Nm @ 3800 rpm.
97.36 lb.-ft. @ 3800 rpm.
Engine layout Front, Transverse
Engine Model/Code BUD
Engine displacement 1390 cm3
84.82 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76.5 mm
3.01 in.
Piston Stroke 75.6 mm
2.98 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.6 l
5.92 US qt | 4.93 UK qt

Space, Volume and weights
Kerb Weight 1095 kg
2414.06 lbs.
Max. weight 1650 kg
3637.63 lbs.
Max load 555 kg
1223.57 lbs.
Trunk (boot) space – minimum 270 l
9.53 cu. ft.
Trunk (boot) space – maximum 1030 l
36.37 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 3897 mm
153.43 in.
Width 1650 mm
64.96 in.
Height 1465 mm
57.68 in.
Wheelbase 2460 mm
96.85 in.
Front track 1435 mm
56.5 in.
Rear (Back) track 1425 mm
56.1 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Trailing arm
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 165/70 R14
Wheel rims size 14
