Specifications: Volkswagen Polo V (3-door) 1.2 TSI (105 Hp) DSG 2009, 2010, 2011, 2012, 2013, 2014

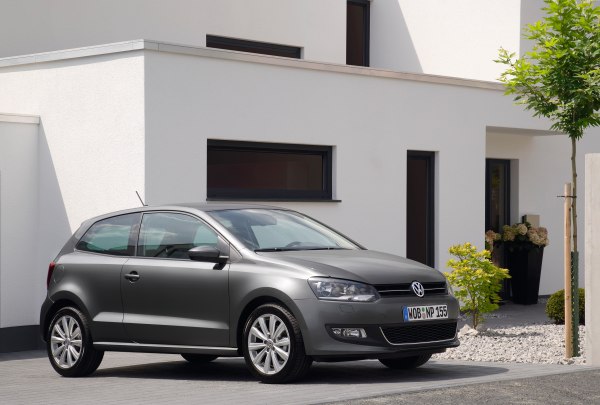

2010 Volkswagen Polo V (3-door) - Photo 1

Volkswagen Polo V (3-door) 1.2 TSI (105 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Polo
Generation Polo V (3-door)
Modification (Engine) 1.2 TSI (105 Hp) DSG
Start of production November, 2009 year
End of production March, 2014 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban (NEDC) 7 l/100 km
33.6 US mpg
40.4 UK mpg
14.3 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.4 l/100 km
53.5 US mpg
64.2 UK mpg
22.7 km/l
Fuel consumption (economy) – combined (NEDC) 5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l
CO2 emissions (NEDC) 124 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.7 sec
Acceleration 0 – 62 mph 9.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.2 sec
Maximum speed 190 km/h
118.06 mph
Emission standard Euro 5
Weight-to-power ratio 10 kg/Hp, 99.9 Hp/tonne
Weight-to-torque ratio 6 kg/Nm, 166.5 Nm/tonne
Engine specs
Power 105 Hp @ 5000 rpm.
Power per litre 87.7 Hp/l
Torque 175 Nm @ 1550-4100 rpm.
129.07 lb.-ft. @ 1550-4100 rpm.
Engine layout Front, Transverse
Engine Model/Code EA111 / CBZB
Engine displacement 1197 cm3
73.05 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 75.6 mm
2.98 in.
Compression ratio 10:1
Number of valves per cylinder 2
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.6 l
5.92 US qt | 4.93 UK qt

Space, Volume and weights
Kerb Weight 1051 kg
2317.06 lbs.
Max. weight 1600 kg
3527.4 lbs.
Max load 549 kg
1210.34 lbs.
Trunk (boot) space – minimum 280 l
9.89 cu. ft.
Trunk (boot) space – maximum 952 l
33.62 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1200 kg
2645.55 lbs.
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 560 kg
1234.59 lbs.
Permitted towbar download 50 kg
110.23 lbs.
Dimensions
Length 3970 mm
156.3 in.
Width 1682 mm
66.22 in.
Width including mirrors 1901 mm
74.84 in.
Height 1462 mm
57.56 in.
Wheelbase 2470 mm
97.24 in.
Front track 1463 mm
57.6 in.
Rear (Back) track 1456 mm
57.32 in.
Front overhang 839 mm
33.03 in.
Rear overhang 661 mm
26.02 in.
Ride height (ground clearance) 153 mm
6.02 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Approach angle 13.3°
Departure angle 19.5°
Ramp-over (brakeover) angle 11.1°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs, 288×25 mm
Rear brakes Disc, 232×9 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 185/60 R15; 215/45 R16; 215/40 R17
Wheel rims size 6J x 15; 7J x 16; 7J x 17
