Specifications: Volkswagen Polo Vivo I 1.4 (86 Hp) 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

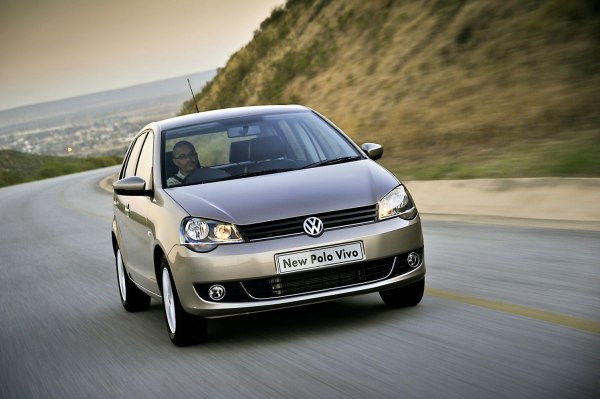

2010 Volkswagen Polo Vivo I - Photo 1

Volkswagen Polo Vivo I 1.4 (86 Hp) – Full specifications
General information
Brand Volkswagen
Model Polo Vivo
Generation Polo Vivo I
Modification (Engine) 1.4 (86 Hp)
Start of production 2010 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.1 l/100 km
29 US mpg
34.9 UK mpg
12.3 km/l
Fuel consumption (economy) – extra urban 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption (economy) – combined 6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l
CO2 emissions 147 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.2 sec
Acceleration 0 – 62 mph 12.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.6 sec
Maximum speed 177 km/h
109.98 mph
Weight-to-power ratio 12.3 kg/Hp, 81.3 Hp/tonne
Weight-to-torque ratio 8 kg/Nm, 124.8 Nm/tonne
Engine specs
Power 86 Hp @ 5000 rpm.
Power per litre 61.5 Hp/l
Torque 132 Nm @ 3600 rpm.
97.36 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code CLPA
Engine displacement 1398 cm3
85.31 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76.5 mm
3.01 in.
Piston Stroke 75.6 mm
2.98 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1058 kg
2332.49 lbs.
Trunk (boot) space – minimum 270 l
9.53 cu. ft.
Trunk (boot) space – maximum 635 l
22.42 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 3916 mm
154.17 in.
Width 1650 mm
64.96 in.
Height 1467 mm
57.76 in.
Wheelbase 2462 mm
96.93 in.
Front track 1434 mm
56.46 in.
Rear (Back) track 1426 mm
56.14 in.
Ride height (ground clearance) 115 mm
4.53 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut, Wishbone
Rear suspension Spring Strut, Trailing arm, Torsion
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/55 R15
Wheel rims size 6J x 15
