Specifications: Volkswagen Routan 3.8 V6 (197 Hp) Automatic 2008, 2009, 2010

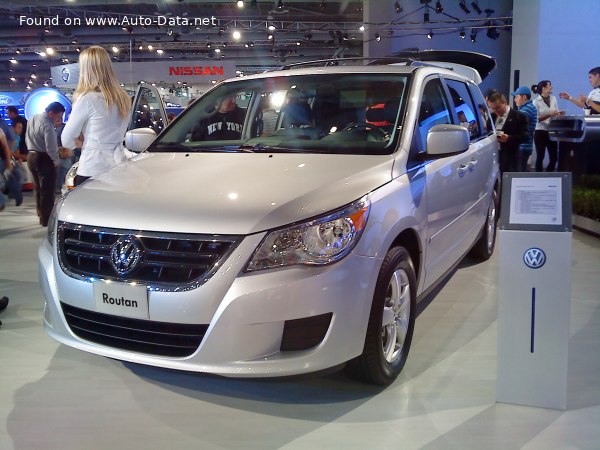

2009 Volkswagen Routan - Photo 1

Volkswagen Routan 3.8 V6 (197 Hp) Automatic – Full specifications
General information
Brand Volkswagen
Model Routan
Generation Routan
Modification (Engine) 3.8 V6 (197 Hp) Automatic
Start of production 2008 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 14.7 l/100 km
16 US mpg
19.2 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban 10.2 l/100 km
23.1 US mpg
27.7 UK mpg
9.8 km/l
Fuel Type Petrol (Gasoline)
Engine specs
Power 197 Hp
Power per litre 52.1 Hp/l
Torque 312 Nm @ 5200 rpm.
230.12 lb.-ft. @ 5200 rpm.
Engine layout Front, Transverse
Engine Model/Code EGH
Engine displacement 3778 cm3
230.55 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 96.01 mm
3.78 in.
Piston Stroke 87.12 mm
3.43 in.
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHV
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Coolant 12.6 l
13.31 US qt | 11.09 UK qt

Space, Volume and weights
Trunk (boot) space – maximum 4100 l
144.79 cu. ft.
Permitted trailer load with brakes (12%) 907 kg
1999.59 lbs.
Dimensions
Length 5143 mm
202.48 in.
Width 1953 mm
76.89 in.
Height 1750 mm
68.9 in.
Wheelbase 3078 mm
121.18 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/65 R16; 225/65 R17
Wheel rims size 6.5J x 16; 6.5J x 17
