Specifications: Volkswagen Sharan I (facelift 2000) 1.9 TDI (115 Hp) 2000, 2001, 2002, 2003, 2004

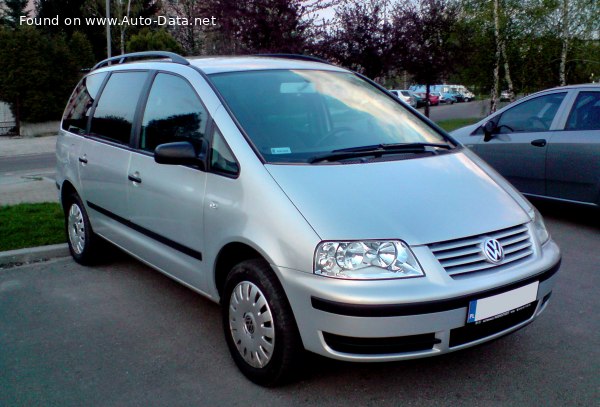

2000 Volkswagen Sharan I (facelift 2000) - Photo 1

Volkswagen Sharan I (facelift 2000) 1.9 TDI (115 Hp) – Full specifications
General information
Brand Volkswagen
Model Sharan
Generation Sharan I (facelift 2000)
Modification (Engine) 1.9 TDI (115 Hp)
Start of production 2000 year
End of production 2004 year
Powertrain Architecture Internal Combustion engine
Body type Minivan, MPV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 8.6 l/100 km
27.4 US mpg
32.8 UK mpg
11.6 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.5 l/100 km
42.8 US mpg
51.4 UK mpg
18.2 km/l
Fuel consumption (economy) – combined (NEDC) 6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l
CO2 emissions (NEDC) 178 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.7 sec
Acceleration 0 – 62 mph 13.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13 sec
Maximum speed 181 km/h
112.47 mph
Emission standard Euro 3
Weight-to-power ratio 16.8 kg/Hp, 59.6 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 160.8 Nm/tonne
Engine specs
Power 115 Hp @ 4000 rpm.
Power per litre 60.7 Hp/l
Torque 310 Nm @ 1900 rpm.
228.64 lb.-ft. @ 1900 rpm.
Engine layout Front, Transverse
Engine Model/Code AUY
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 18:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.8 l
7.19 US qt | 5.98 UK qt

Space, Volume and weights
Kerb Weight 1928 kg
4250.51 lbs.
Max. weight 2470 kg
5445.42 lbs.
Max load 542 kg
1194.91 lbs.
Trunk (boot) space – minimum 256 l
9.04 cu. ft.
Trunk (boot) space – maximum 2610 l
92.17 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 700 kg
1543.24 lbs.
Permitted towbar download 85 kg
187.39 lbs.
Dimensions
Length 4634 mm
182.44 in.
Width 1810 mm
71.26 in.
Height 1759 mm
69.25 in.
Wheelbase 2841 mm
111.85 in.
Front track 1530 mm
60.24 in.
Rear (Back) track 1524 mm
60 in.
Minimum turning circle (turning diameter) 11.9 m
39.04 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Transverse stabilizer, Trailing arm, Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/60 R16
Wheel rims size 6J x 16
