Specifications: Volkswagen Sharan I (facelift 2004) 2.0 (115 Hp) 2004, 2005, 2006, 2007, 2008, 2009, 2010

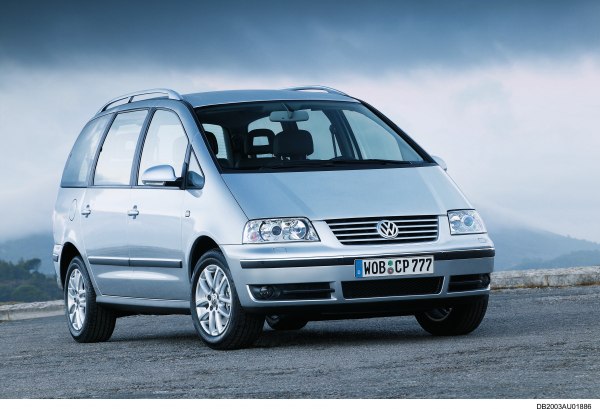

2004 Volkswagen Sharan I (facelift 2004) - Photo 1

Volkswagen Sharan I (facelift 2004) 2.0 (115 Hp) – Full specifications
General information
Brand Volkswagen
Model Sharan
Generation Sharan I (facelift 2004)
Modification (Engine) 2.0 (115 Hp)
Start of production 2004 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Minivan, MPV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 12.8 l/100 km
18.4 US mpg
22.1 UK mpg
7.8 km/l
Fuel consumption (economy) – extra urban (NEDC) 7.4 l/100 km
31.8 US mpg
38.2 UK mpg
13.5 km/l
Fuel consumption (economy) – combined (NEDC) 9.4 l/100 km
25 US mpg
30.1 UK mpg
10.6 km/l
CO2 emissions (NEDC) 223 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 15.2 sec
Acceleration 0 – 62 mph 15.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.4 sec
Maximum speed 177 km/h
109.98 mph
Emission standard Euro 4
Weight-to-power ratio 14.6 kg/Hp, 68.6 Hp/tonne
Weight-to-torque ratio 9.9 kg/Nm, 101.4 Nm/tonne
Engine specs
Power 115 Hp @ 5200 rpm.
Power per litre 58 Hp/l
Torque 170 Nm @ 2600-4200 rpm.
125.39 lb.-ft. @ 2600-4200 rpm.
Engine layout Front, Transverse
Engine Model/Code ATM
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 10.5:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.9 l
9.4 US qt | 7.83 UK qt

Space, Volume and weights
Kerb Weight 1676 kg
3694.95 lbs.
Max. weight 2430 kg
5357.23 lbs.
Max load 754 kg
1662.29 lbs.
Trunk (boot) space – minimum 256 l
9.04 cu. ft.
Trunk (boot) space – maximum 2610 l
92.17 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1800 kg
3968.32 lbs.
Permitted trailer load without brakes 700 kg
1543.24 lbs.
Permitted towbar download 85 kg
187.39 lbs.
Dimensions
Length 4634 mm
182.44 in.
Width 1810 mm
71.26 in.
Width including mirrors 2142 mm
84.33 in.
Height 1730 mm
68.11 in.
Wheelbase 2835 mm
111.61 in.
Front track 1530 mm
60.24 in.
Rear (Back) track 1524 mm
60 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Approach angle 13.6°
Departure angle 14.6°
Ramp-over (brakeover) angle 13°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Transverse stabilizer, Trailing arm, Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/60 R16
Wheel rims size 6J x 16
