Specifications: Volkswagen Sharan II 2.0 TDI BMT (170 Hp) 2010, 2011, 2012

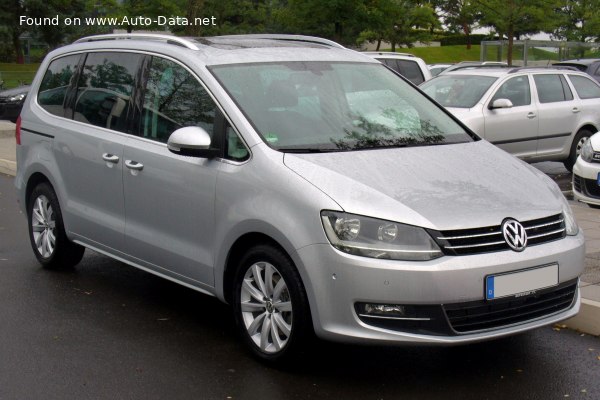

2010 Volkswagen Sharan II - Photo 1

Volkswagen Sharan II 2.0 TDI BMT (170 Hp) – Full specifications
General information
Brand Volkswagen
Model Sharan
Generation Sharan II
Modification (Engine) 2.0 TDI BMT (170 Hp)
Start of production 2010 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Minivan, MPV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption (economy) – extra urban (NEDC) 5 l/100 km
47 US mpg
56.5 UK mpg
20 km/l
Fuel consumption (economy) – combined (NEDC) 5.8 l/100 km
40.6 US mpg
48.7 UK mpg
17.2 km/l
CO2 emissions (NEDC) 152 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.5 sec
Acceleration 0 – 62 mph 9.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9 sec
Maximum speed 207 km/h
128.62 mph
Emission standard Euro 5
Weight-to-power ratio 10.1 kg/Hp, 98.9 Hp/tonne
Weight-to-torque ratio 4.9 kg/Nm, 203.6 Nm/tonne
Engine specs
Power 170 Hp @ 4200 rpm.
Power per litre 86.4 Hp/l
Torque 350 Nm @ 1750-2500 rpm.
258.15 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code CFGB
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 18:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1719 kg
3789.75 lbs.
Max. weight 2360 kg
5202.91 lbs.
Max load 641 kg
1413.16 lbs.
Trunk (boot) space – minimum 885 l
31.25 cu. ft.
Trunk (boot) space – maximum 2430 l
85.81 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 2300 kg
5070.63 lbs.
Permitted trailer load with brakes (12%) 2200 kg
4850.17 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4854 mm
191.1 in.
Width 1904 mm
74.96 in.
Width including mirrors 2081 mm
81.93 in.
Height 1720 mm
67.72 in.
Wheelbase 2919 mm
114.92 in.
Front track 1569 mm
61.77 in.
Rear (Back) track 1617 mm
63.66 in.
Ride height (ground clearance) 163 mm
6.42 in.
Minimum turning circle (turning diameter) 11.9 m
39.04 ft.
Approach angle 13.7°
Departure angle 14°
Ramp-over (brakeover) angle 9.6°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/60 R16; 225/50 R17
Wheel rims size 6.5J x 16; 7J x 17
