Specifications: Volkswagen T-Roc I 2.0 TSI (190 Hp) 4MOTION OPF DSG 2020, 2021

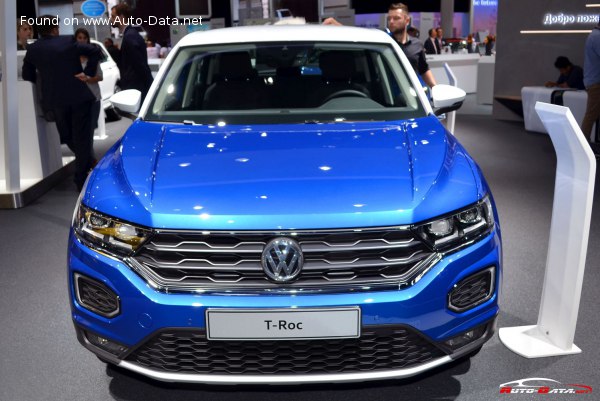

2017 Volkswagen T-Roc I - Photo 1

Volkswagen T-Roc I 2.0 TSI (190 Hp) 4MOTION OPF DSG – Full specifications
General information
Brand Volkswagen
Model T-Roc
Generation T-Roc I
Modification (Engine) 2.0 TSI (190 Hp) 4MOTION OPF DSG
Start of production 2020 year
End of production October, 2021 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 8.6-8.7 l/100 km
27.4 – 27 US mpg
32.8 – 32.5 UK mpg
11.6 – 11.5 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.5-5.7 l/100 km
42.8 – 41.3 US mpg
51.4 – 49.6 UK mpg
18.2 – 17.5 km/l
Fuel consumption (economy) – combined (NEDC) 6.6-6.8 l/100 km
35.6 – 34.6 US mpg
42.8 – 41.5 UK mpg
15.2 – 14.7 km/l
CO2 emissions (NEDC) 151-155 g/km
Fuel Type Petrol (Gasoline)
Maximum speed 216 km/h
134.22 mph
Emission standard Euro 6d-TEMP-EVAP-ISC
Weight-to-power ratio 7.5 kg/Hp, 133 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 223.9 Nm/tonne
Engine specs
Power 190 Hp @ 4200 rpm.
Power per litre 95.8 Hp/l
Torque 320 Nm @ 1500-4100 rpm.
236.02 lb.-ft. @ 1500-4100 rpm.
Engine layout Front, Transverse
Engine Model/Code EA888 evo4 / DNNA
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1429 kg
3150.41 lbs.
Max. weight 2000 kg
4409.25 lbs.
Max load 571 kg
1258.84 lbs.
Trunk (boot) space – minimum 392 l
13.84 cu. ft.
Trunk (boot) space – maximum 1237 l
43.68 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1900 kg
4188.78 lbs.
Permitted trailer load with brakes (12%) 1700 kg
3747.86 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4234 mm
166.69 in.
Width 1819 mm
71.61 in.
Width including mirrors 1992 mm
78.43 in.
Height 1573 mm
61.93 in.
Wheelbase 2593 mm
102.09 in.
Front track 1538-1546 mm
60.55 – 60.87 in.
Rear (Back) track 1539-1547 mm
60.59 – 60.91 in.
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Ramp-over (brakeover) angle 12.5°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/50 R18
Wheel rims size 7J x 18
