Specifications: Volkswagen Touareg II (7P, facelift 2014) 3.0 V6 TSI (380 Hp) Hybrid 4MOTION Automatic 2014, 2015

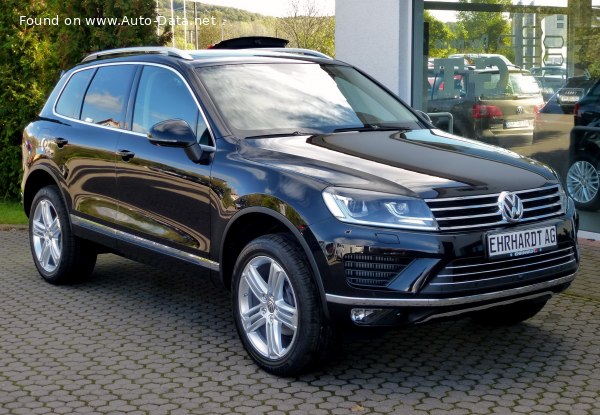

2014 Volkswagen Touareg II (7P, facelift 2014) - Photo 1

Volkswagen Touareg II (7P, facelift 2014) 3.0 V6 TSI (380 Hp) Hybrid 4MOTION Automatic – Full specifications
General information
Brand Volkswagen
Model Touareg
Generation Touareg II (7P, facelift 2014)
Modification (Engine) 3.0 V6 TSI (380 Hp) Hybrid 4MOTION Automatic
Start of production 2014 year
End of production 2015 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 11.8 l/100 km
19.9 US mpg
23.9 UK mpg
8.5 km/l
Fuel consumption (economy) – extra urban 9.8 l/100 km
24 US mpg
28.8 UK mpg
10.2 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.5 sec
Acceleration 0 – 62 mph 6.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.2 sec
Maximum speed 240 km/h
149.13 mph
Emission standard Euro 5
Weight-to-power ratio 6.1 kg/Hp, 163.2 Hp/tonne
Weight-to-torque ratio 4 kg/Nm, 249 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.73 kWh
Battery voltage 288 V
Battery technology Nickel-metal hydride (NiMH)
Battery weight 79 kg
174.17 lbs.
Electric motor 1
Electric motor power 47 Hp
Electric motor Torque 300 Nm

221.27 lb.-ft.
System power 380 Hp @ 5500-6500 rpm.
System torque 580 Nm
427.79 lb.-ft.
Internal combustion engine specs
Power 333 Hp @ 5500 rpm.
Power per litre 111.2 Hp/l
Torque 440 Nm @ 3000 rpm.
324.53 lb.-ft. @ 3000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code CGEA, CGFA
Engine displacement 2995 cm3
182.77 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Supercharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.8 l
7.19 US qt | 5.98 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 2329 kg
5134.57 lbs.
Max. weight 2910 kg
6415.45 lbs.
Max load 581 kg
1280.89 lbs.
Trunk (boot) space – minimum 610 l
21.54 cu. ft.
Trunk (boot) space – maximum 1555 l
54.91 cu. ft.
Fuel tank capacity 100 l
26.42 US gal | 22 UK gal
Permitted trailer load with brakes (12%) 1588 kg
3500.94 lbs.
Dimensions
Length 4795 mm
188.78 in.
Width 1940 mm
76.38 in.
Height 1737 mm
68.39 in.
Wheelbase 2893 mm
113.9 in.
Front track 1638 mm
64.49 in.
Rear (Back) track 1658 mm
65.28 in.
Ride height (ground clearance) 201 mm
7.91 in.
Minimum turning circle (turning diameter) 11.9 m
39.04 ft.
Approach angle 26°
Departure angle 26°
Ramp-over (brakeover) angle 21°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the front wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the rear wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front brakes Ventilated discs, 360.68 mm
Rear brakes Disc, 330.2 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/55 R18; 275/45 R20
Wheel rims size 8J x 18; 9J x 20
