Specifications: Volkswagen Touran I (facelift 2010) 1.6 TDI (105 Hp) BMT 2010, 2011, 2012, 2013, 2014, 2015

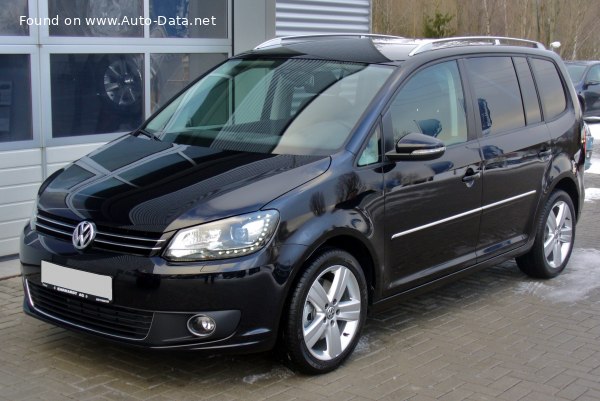

2010 Volkswagen Touran I (facelift 2010) - Photo 1

Volkswagen Touran I (facelift 2010) 1.6 TDI (105 Hp) BMT – Full specifications
General information
Brand Volkswagen
Model Touran
Generation Touran I (facelift 2010)
Modification (Engine) 1.6 TDI (105 Hp) BMT
Start of production 2010 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.5 l/100 km
42.8 US mpg
51.4 UK mpg
18.2 km/l
Fuel consumption (economy) – extra urban 4.1 l/100 km
57.4 US mpg
68.9 UK mpg
24.4 km/l
Fuel consumption (economy) – combined 4.6 l/100 km
51.1 US mpg
61.4 UK mpg
21.7 km/l
CO2 emissions 121 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.8 sec
Acceleration 0 – 62 mph 12.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.2 sec
Maximum speed 186 km/h
115.58 mph
Emission standard Euro 5
Weight-to-power ratio 14.7 kg/Hp, 68 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 161.9 Nm/tonne
Engine specs
Power 105 Hp @ 4400 rpm.
Power per litre 65.7 Hp/l
Torque 250 Nm @ 1500-2500 rpm.
184.39 lb.-ft. @ 1500-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code CAYC
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1544 kg
3403.94 lbs.
Max. weight 2180 kg
4806.08 lbs.
Max load 636 kg
1402.14 lbs.
Trunk (boot) space – minimum 695 l
24.54 cu. ft.
Trunk (boot) space – maximum 1989 l
70.24 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4397 mm
173.11 in.
Width 1794 mm
70.63 in.
Height 1674 mm
65.91 in.
Wheelbase 2678 mm
105.43 in.
Front track 1541 mm
60.67 in.
Rear (Back) track 1514 mm
59.61 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 195/65 R15; 205/55 R16
Wheel rims size 6J x 15; 6.5J x 16
