Specifications: Volkswagen Transporter (T4) Panel Van 2.5 (110 Hp) Automatic L2H2 1990, 1991, 1992, 1993, 1994, 1995

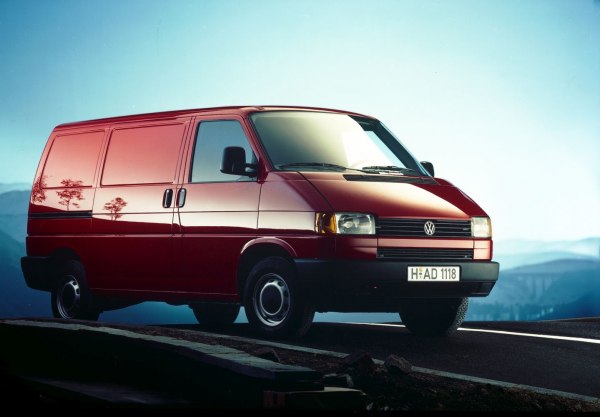

1991 Volkswagen Transporter (T4) Panel Van - Photo 1

Volkswagen Transporter (T4) Panel Van 2.5 (110 Hp) Automatic L2H2 – Full specifications
General information
Brand Volkswagen
Model Transporter
Generation Transporter (T4) Panel Van
Modification (Engine) 2.5 (110 Hp) Automatic L2H2
Start of production 1990 year
End of production 1995 year
Powertrain Architecture Internal Combustion engine
Body type Van
Seats 2
Doors 4-5
Performance specs
Fuel consumption (economy) – combined 14.6 l/100 km
16.1 US mpg
19.3 UK mpg
6.8 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 147 km/h
91.34 mph
Weight-to-power ratio 15.7 kg/Hp, 63.8 Hp/tonne
Weight-to-torque ratio 9.1 kg/Nm, 110.1 Nm/tonne
Engine specs
Power 110 Hp @ 4500 rpm.
Power per litre 44.7 Hp/l
Torque 190 Nm @ 2200 rpm.
140.14 lb.-ft. @ 2200 rpm.
Engine layout Front, Transverse
Engine Model/Code AAF, ACU
Engine displacement 2461 cm3
150.18 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 8.5:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.5 l
12.15 US qt | 10.12 UK qt

Space, Volume and weights
Kerb Weight 1725 kg
3802.97 lbs.
Max. weight 2640-2800 kg
5820.2 – 6172.94 lbs.
Max load 915-1075 kg
2017.23 – 2369.97 lbs.
Trunk (boot) space – maximum 7800 l
275.45 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 700 kg
1543.24 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 5055 mm
199.02 in.
Width 1840 mm
72.44 in.
Height 2400 mm
94.49 in.
Wheelbase 3320 mm
130.71 in.
Front track 1575 mm
62.01 in.
Rear (Back) track 1540 mm
60.63 in.
Front overhang 860 mm
33.86 in.
Rear overhang 875 mm
34.45 in.
Ride height (ground clearance) 180 mm
7.09 in.
Minimum turning circle (turning diameter) 12.9 m
42.32 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Independent torsion bar, double wishbone, Transverse stabilizer
Rear suspension Independent coil spring, Trailing arm
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/70 R15; 205/65 R15; 215/65 R15
Wheel rims size 6J x 15; 7J x 15
