Specifications: Volkswagen Transporter (T5, facelift 2009) Kombi 2.0 TDI (140 Hp) 4MOTION L2H3 2009, 2010, 2011, 2012, 2013, 2014, 2015

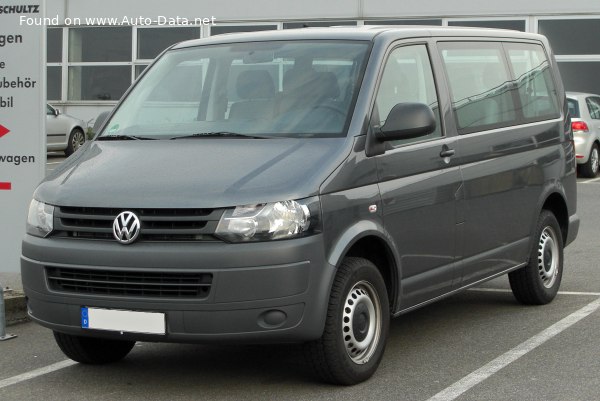

2010 Volkswagen Transporter (T5, facelift 2009) Kombi - Photo 1

Volkswagen Transporter (T5, facelift 2009) Kombi 2.0 TDI (140 Hp) 4MOTION L2H3 – Full specifications
General information
Brand Volkswagen
Model Transporter
Generation Transporter (T5, facelift 2009) Kombi
Modification (Engine) 2.0 TDI (140 Hp) 4MOTION L2H3
Start of production 2009 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Van
Seats 4-9
Doors 4-5
Performance specs
Fuel consumption (economy) – urban (NEDC) 10.2 l/100 km
23.1 US mpg
27.7 UK mpg
9.8 km/l
Fuel consumption (economy) – extra urban (NEDC) 7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption (economy) – combined (NEDC) 8.4 l/100 km
28 US mpg
33.6 UK mpg
11.9 km/l
CO2 emissions (NEDC) 221 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 14.1 sec
Acceleration 0 – 62 mph 14.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.4 sec
Maximum speed 158 km/h
98.18 mph
Emission standard Euro 5
Weight-to-power ratio 13.9 kg/Hp, 71.7 Hp/tonne
Weight-to-torque ratio 5.7 kg/Nm, 174.2 Nm/tonne
Engine specs
Power 140 Hp @ 3500 rpm.
Power per litre 71.1 Hp/l
Torque 340 Nm @ 1750-2500 rpm.
250.77 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code EA189 / CAAC
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7 l
7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11 l
11.62 US qt | 9.68 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1952-2350 kg
4303.42 – 5180.86 lbs.
Max. weight 3000-3200 kg
6613.87 – 7054.79 lbs.
Max load 850-1048 kg
1873.93 – 2310.44 lbs.
Trunk (boot) space – maximum 9300 l
328.43 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Permitted trailer load with brakes (12%) 2500 kg
5511.56 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 5292 mm
208.35 in.
Width 1904 mm
74.96 in.
Width including mirrors 2283 mm
89.88 in.
Height 2476 mm
97.48 in.
Wheelbase 3400 mm
133.86 in.
Front overhang 896 mm
35.28 in.
Rear overhang 996 mm
39.21 in.
Ride height (ground clearance) 201 mm
7.91 in.
Minimum turning circle (turning diameter) 13.2 m
43.31 ft.
Approach angle 21°
Departure angle 17°
Ramp-over (brakeover) angle 12°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent coil spring, Transverse stabilizer, Trailing arm
Front brakes Ventilated discs, 308×29.5 mm
Rear brakes Ventilated discs, 294×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/65 R16
Wheel rims size 6.5J x 16
