Specifications: Volkswagen Transporter (T5) Panel Van 2.5 TDI (174 Hp) 4MOTION L2H2 2003, 2004, 2005, 2006

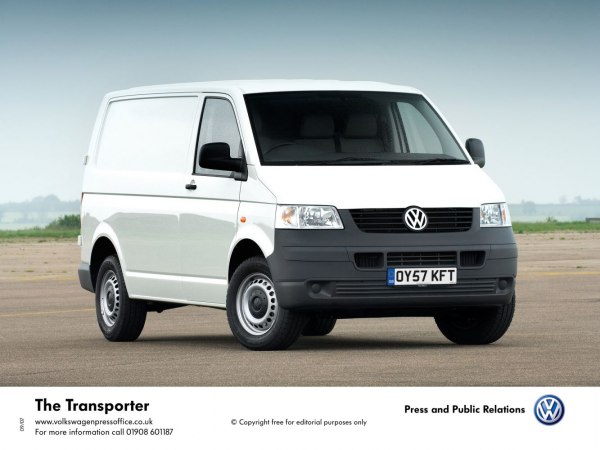

2004 Volkswagen Transporter (T5) Panel Van - Photo 1

Volkswagen Transporter (T5) Panel Van 2.5 TDI (174 Hp) 4MOTION L2H2 – Full specifications
General information
Brand Volkswagen
Model Transporter
Generation Transporter (T5) Panel Van
Modification (Engine) 2.5 TDI (174 Hp) 4MOTION L2H2
Start of production 2003 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Van
Seats 2-3
Doors 4-5
Performance specs
Fuel consumption (economy) – extra urban 7.2 l/100 km
32.7 US mpg
39.2 UK mpg
13.9 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.7 sec
Acceleration 0 – 62 mph 12.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.1 sec
Maximum speed 178 km/h
110.6 mph
Emission standard Euro 3
Weight-to-power ratio 11.7 kg/Hp, 85.5 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 196.6 Nm/tonne
Engine specs
Power 174 Hp @ 3500 rpm.
Power per litre 70.7 Hp/l
Torque 400 Nm @ 2000-2300 rpm.
295.02 lb.-ft. @ 2000-2300 rpm.
Engine layout Front, Transverse
Engine Model/Code EA153 / AXE
Engine displacement 2460 cm3
150.12 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 18.5:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 7.4 l
7.82 US qt | 6.51 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.1 l
7.5 US qt | 6.25 UK qt

Space, Volume and weights
Kerb Weight 2035-2238 kg
4486.41 – 4933.95 lbs.
Max. weight 2800-3000 kg
6172.94 – 6613.87 lbs.
Max load 762-765 kg
1679.92 – 1686.54 lbs.
Trunk (boot) space – maximum 7800 l
275.45 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Permitted trailer load with brakes (8%) 2500 kg
5511.56 lbs.
Permitted trailer load with brakes (12%) 2500 kg
5511.56 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 5290 mm
208.27 in.
Width 1904 mm
74.96 in.
Width including mirrors 2242 mm
88.27 in.
Height 2160 mm
85.04 in.
Wheelbase 3400 mm
133.86 in.
Front track 1628 mm
64.09 in.
Rear (Back) track 1628 mm
64.09 in.
Front overhang 894 mm
35.2 in.
Rear overhang 996 mm
39.21 in.
Ride height (ground clearance) 165 mm
6.5 in.
Minimum turning circle (turning diameter) 13.2 m
43.31 ft.
Approach angle 22°
Departure angle 16°
Wading depth 300 mm
11.81 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent coil spring, Transverse stabilizer, Trailing arm
Front brakes Ventilated discs, 308×29.5 mm
Rear brakes Ventilated discs, 294×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/65 R16
Wheel rims size 6.5J x 16
