| General information | |
|---|---|
| Brand | Volkswagen |
| Model | Transporter |
| Generation | Transporter (T6.1, facelift 2019) Panel Van |
| Modification (Engine) | 2.0 TDI (150 Hp) L2H1 |
| Start of production | 2021 year |
| End of production | 2023 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Van |
| Seats | 2-3 |
| Doors | 4-5 |
| Performance specs | |
| Fuel consumption at Low speed (WLTP) | 7.9-8.8 l/100 km 29.8 – 26.7 US mpg 35.8 – 32.1 UK mpg 12.7 – 11.4 km/l |
| Fuel consumption at Medium speed (WLTP) | 6.6-7.7 l/100 km 35.6 – 30.5 US mpg 42.8 – 36.7 UK mpg 15.2 – 13 km/l |
| Fuel consumption at high speed (WLTP) | 6-7 l/100 km 39.2 – 33.6 US mpg 47.1 – 40.4 UK mpg 16.7 – 14.3 km/l |
| Fuel consumption at very high speed (WLTP) | 7.5-8.9 l/100 km 31.4 – 26.4 US mpg 37.7 – 31.7 UK mpg 13.3 – 11.2 km/l |
| Combined fuel consumption (WLTP) | 6.9-8.1 l/100 km 34.1 – 29 US mpg 40.9 – 34.9 UK mpg 14.5 – 12.3 km/l |
| CO2 emissions (WLTP) | 181-211 g/km |
| Fuel consumption (economy) – urban (NEDC, WLTP equivalent) | 7.4-8.3 l/100 km 31.8 – 28.3 US mpg 38.2 – 34 UK mpg 13.5 – 12 km/l |
| Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) | 5.2-6.8 l/100 km 45.2 – 34.6 US mpg 54.3 – 41.5 UK mpg 19.2 – 14.7 km/l |
| Fuel consumption (economy) – combined (NEDC, WLTP equivalent) | 6-7.3 l/100 km 39.2 – 32.2 US mpg 47.1 – 38.7 UK mpg 16.7 – 13.7 km/l |
| CO2 emissions (NEDC, WLTP equivalent) | 158-193 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 11.1 sec |
| Acceleration 0 – 62 mph | 11.1 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 10.5 sec |
| Maximum speed | 183 km/h 113.71 mph |
| Emission standard | Euro 6d-ISC-FCM |
| Weight-to-power ratio | 12.4 kg/Hp, 80.6 Hp/tonne |
| Weight-to-torque ratio | 5.5 kg/Nm, 182.7 Nm/tonne |
| Engine specs | |
| Power | 150 Hp @ 3250-3750 rpm. |
| Power per litre | 76.2 Hp/l |
| Torque | 340 Nm @ 1500-3000 rpm. 250.77 lb.-ft. @ 1500-3000 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | EA288MAR / DNAA |
| Engine displacement | 1968 cm3 120.09 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm 3.19 in. |
| Piston Stroke | 95.5 mm 3.76 in. |
| Compression ratio | 15.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 7.4 l 7.82 US qt | 6.51 UK qt |
| Engine oil specification |  Log in to see. |
| Engine systems | Start & Stop System Particulate filter |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1861-2245 kg 4102.8 – 4949.38 lbs. |
| Max. weight | 2800-3200 kg 6172.94 – 7054.79 lbs. |
| Max load | 939-955 kg 2070.14 – 2105.41 lbs. |
| Trunk (boot) space – maximum | 6700 l 236.61 cu. ft. |
| Fuel tank capacity | 70 l 18.49 US gal | 15.4 UK gal |
| AdBlue tank | 22 l 5.81 US gal | 4.84 UK gal |
| Max. roof load | 100 kg 220.46 lbs. |
| Permitted trailer load with brakes (12%) | 2500 kg 5511.56 lbs. |
| Permitted trailer load without brakes | 750 kg 1653.47 lbs. |
| Permitted towbar download | 100 kg 220.46 lbs. |
| Dimensions | |
| Length | 5304 mm 208.82 in. |
| Width | 1904 mm 74.96 in. |
| Width including mirrors | 2297 mm 90.43 in. |
| Height | 1990 mm 78.35 in. |
| Wheelbase | 3400 mm 133.86 in. |
| Front overhang | 906 mm 35.67 in. |
| Rear overhang | 998 mm 39.29 in. |
| Ride height (ground clearance) | 202 mm 7.95 in. |
| Minimum turning circle (turning diameter) | 13.2 m 43.31 ft. |
| Approach angle | 21.2° |
| Departure angle | 16.2° |
| Ramp-over (brakeover) angle | 12.2° |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent coil spring, Wishbone, Transverse stabilizer |
| Front brakes | Ventilated discs, 308×29.5 mm |
| Rear brakes | Ventilated discs, 294×22 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 205/65 R16; 215/65 R16 |
| Wheel rims size | 6.5J x 16 |
Related articles
Specifications: Daihatsu Charade III 1.0 Turbo (G100) (68 Hp) 1987, 1988, 1989, 1990, 1991, 1992
Specifications: Daihatsu Charade IV (G200) 1.5 i 16V SX (90 Hp) Automatic 1994, 1995, 1996, 1997, 1998, 1999, 2000
Specifications: Opel Commodore B 2.8 GSE (155 Hp) 1975, 1976, 1977, 1978
Specifications: Opel Zafira B (facelift 2008) 2.2i 16V (150 Hp) Automatic 2008, 2009, 2010
Specifications: Opel Zafira Tourer C 1.4 Turbo ecoFLEX (140 Hp) startstop 7 Seat 2012, 2013, 2014
Specifications: Kia Rio IV Sedan (FBUC, facelift 2020) 1.4 Kappa (100 Hp) Automatic 2020, 2021, 2022, 2023, 2024, 2025
Specifications: Kia Seltos 1.5 (115 Hp) 2019, 2020, 2021, 2022, 2023
Specifications: Toyota Tundra II Regular Cab Long Bed (facelift 2010) 5.7 V8 32V (381 Hp) 4×4 Automatic 2010, 2011, 2012, 2013
Specifications: Audi A6 Allroad quattro (C8) 55 TFSI V6 (340 Hp) Mild Hybrid quattro ultra S tronic 2019, 2020, 2021, 2022, 2023, 2024, 2025
Specifications: Peugeot 405 I Break (15E) 1.6 (75 Hp) 1988, 1989, 1990, 1991, 1992
Specifications: BMW 3 Series Touring (E91 LCI, facelift 2008) 325d (197 Hp) 2008, 2009, 2010, 2011, 2012
Specifications: Pontiac GTO 5.7i V8 16V (344 Hp) 2004, 2005
Specifications: BMW M6 Convertible (F12M, LCI, facelift 2014) 4.4 V8 (560 Hp) 2014, 2015, 2016, 2017, 2018
Specifications: Volkswagen Transporter (T4, facelift 1996) Kombi 1.9 TD (68 Hp) L1H1 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Specifications: Ford Kuga II (facelift 2016) 1.5 EcoBoost (120 Hp) 2016, 2017, 2018

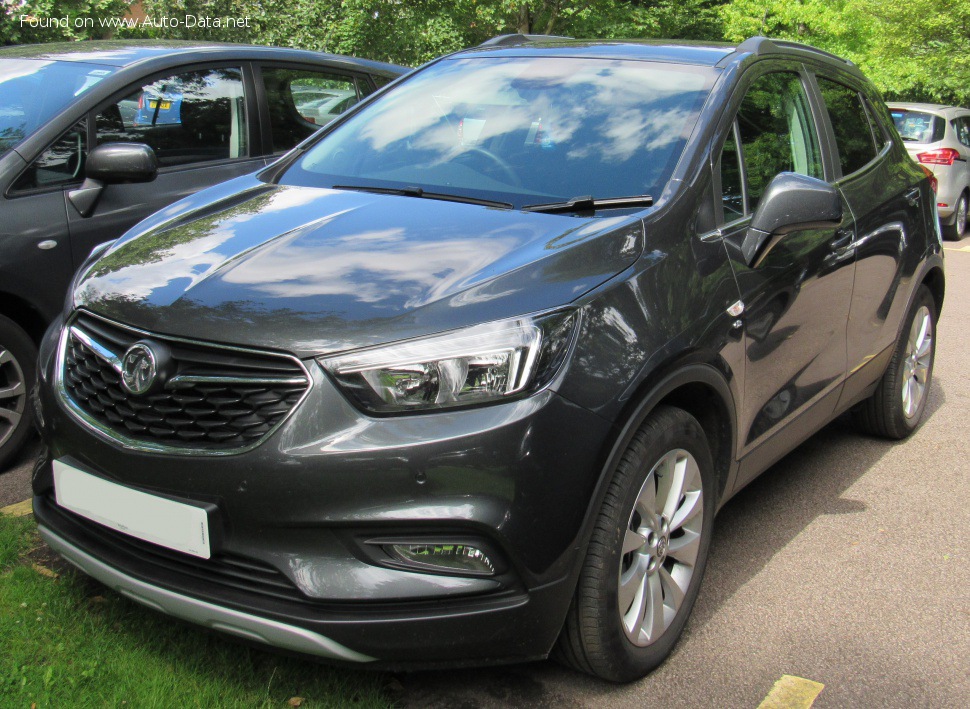

Specifications: Vauxhall Mokka X (facelift 2016) 1.6 CDTi ecoTEC (136 Hp) Automatic 2016, 2017, 2018
