Specifications: Volkswagen Transporter (T6.1, facelift 2019) Panel Van 2.0 TDI (199 Hp) DSG L2H1 2019, 2020, 2021

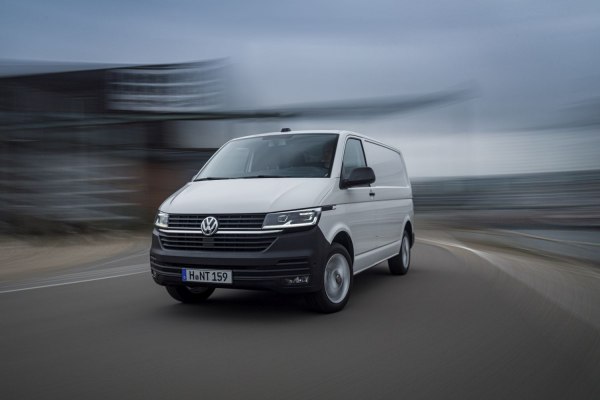

2020 Volkswagen Transporter (T6.1, facelift 2019) Panel Van - Photo 1

Volkswagen Transporter (T6.1, facelift 2019) Panel Van 2.0 TDI (199 Hp) DSG L2H1 – Full specifications
General information
Brand Volkswagen
Model Transporter
Generation Transporter (T6.1, facelift 2019) Panel Van
Modification (Engine) 2.0 TDI (199 Hp) DSG L2H1
Start of production 2019 year
End of production 2021 year
Powertrain Architecture Internal Combustion engine
Body type Van
Seats 2-3
Doors 4-5
Performance specs
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 7.1-8.3 l/100 km
33.1 – 28.3 US mpg
39.8 – 34 UK mpg
14.1 – 12 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 5.5-6.8 l/100 km
42.8 – 34.6 US mpg
51.4 – 41.5 UK mpg
18.2 – 14.7 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 6.1-7.3 l/100 km
38.6 – 32.2 US mpg
46.3 – 38.7 UK mpg
16.4 – 13.7 km/l
CO2 emissions (NEDC, WLTP equivalent) 161-193 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.1 sec
Acceleration 0 – 62 mph 9.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.6 sec
Maximum speed 201 km/h
124.9 mph
Emission standard Euro 6d TEMP-EVAP-ISC
Weight-to-power ratio 9.5 kg/Hp, 104.8 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 237.1 Nm/tonne
Engine specs
Power 199 Hp @ 3800-4000 rpm.
Power per litre 101.1 Hp/l
Torque 450 Nm @ 1400-2400 rpm.
331.9 lb.-ft. @ 1400-2400 rpm.
Engine layout Front, Transverse
Engine Model/Code EA288 / CXEC
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 15.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration BiTurbo, Intercooler
Valvetrain DOHC
Engine oil capacity 7.4 l
7.82 US qt | 6.51 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1898-2269 kg
4184.37 – 5002.29 lbs.
Max. weight 2800-3200 kg
6172.94 – 7054.79 lbs.
Max load 902-931 kg
1988.57 – 2052.5 lbs.
Trunk (boot) space – maximum 6700 l
236.61 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
AdBlue tank 13 l
3.43 US gal | 2.86 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2500 kg
5511.56 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 5304 mm
208.82 in.
Width 1904 mm
74.96 in.
Width including mirrors 2297 mm
90.43 in.
Height 1990 mm
78.35 in.
Wheelbase 3400 mm
133.86 in.
Front overhang 906 mm
35.67 in.
Rear overhang 998 mm
39.29 in.
Ride height (ground clearance) 202 mm
7.95 in.
Minimum turning circle (turning diameter) 13.2 m
43.31 ft.
Approach angle 21.2°
Departure angle 16.2°
Ramp-over (brakeover) angle 12.2°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent coil spring, Wishbone, Transverse stabilizer
Front brakes Ventilated discs, 340×32.5 mm
Rear brakes Ventilated discs, 294×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/60 R17; 235/55 R17; 255/45 R18
Wheel rims size 7J x 17; 8J x 18
