Specifications: Volkswagen Vento (1HX0) 1.9 D (64 Hp) 1991, 1992, 1993, 1994, 1995, 1996, 1997

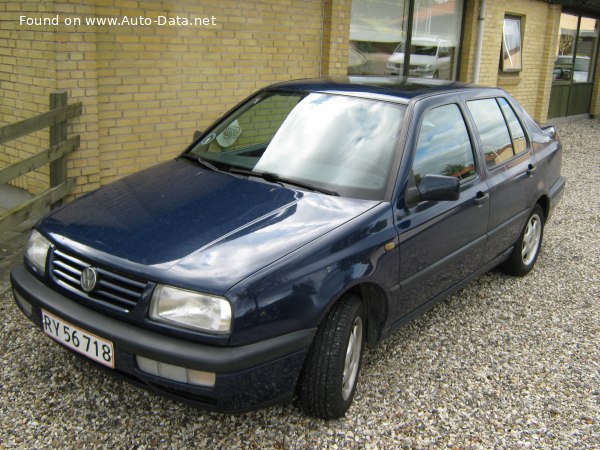

1992 Volkswagen Vento (1HX0) - Photo 1

Volkswagen Vento (1HX0) 1.9 D (64 Hp) – Full specifications
General information
Brand Volkswagen
Model Vento
Generation Vento (1HX0)
Modification (Engine) 1.9 D (64 Hp)
Start of production January, 1991 year
End of production 1997 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 7 l/100 km
33.6 US mpg
40.4 UK mpg
14.3 km/l
Fuel consumption (economy) – extra urban 5.6 l/100 km
42 US mpg
50.4 UK mpg
17.9 km/l
Fuel consumption (economy) – combined 6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 18.3 sec
Acceleration 0 – 62 mph 18.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 17.4 sec
Maximum speed 156 km/h
96.93 mph
Weight-to-power ratio 19.1 kg/Hp, 52.2 Hp/tonne
Weight-to-torque ratio 9.9 kg/Nm, 101.2 Nm/tonne
Engine specs
Power 64 Hp @ 4400 rpm.
Power per litre 33.8 Hp/l
Torque 124 Nm @ 2000 rpm.
91.46 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code 1Y
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 22.5:1
Number of valves per cylinder 2
Fuel injection system Precombustion chamber injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1225 kg
2700.66 lbs.
Max. weight 1630 kg
3593.53 lbs.
Max load 405 kg
892.87 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Trunk (boot) space – maximum 885 l
31.25 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4380 mm
172.44 in.
Width 1695 mm
66.73 in.
Height 1425 mm
56.1 in.
Wheelbase 2475 mm
97.44 in.
Front track 1464 mm
57.64 in.
Rear (Back) track 1448 mm
57.01 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Suspension with traction connecting levers
Front brakes Disc
Rear brakes Drum
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/60 R14
Wheel rims size 6J x 14
