Specifications: Volvo C70 Coupe Cabrio II 2.5 T5 20V (220 Hp) 2005, 2006

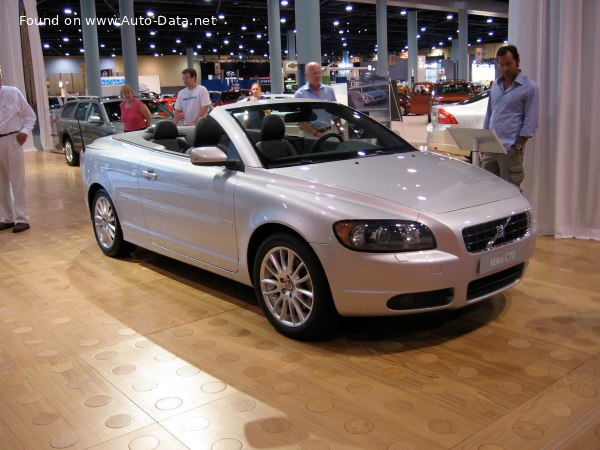

2006 Volvo C70 Coupe Cabrio II - Photo 1

Volvo C70 Coupe Cabrio II 2.5 T5 20V (220 Hp) – Full specifications
General information
Brand Volvo
Model C70
Generation C70 Coupe Cabrio II
Modification (Engine) 2.5 T5 20V (220 Hp)
Start of production 2005 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Coupe – Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 12.9 l/100 km
18.2 US mpg
21.9 UK mpg
7.8 km/l
Fuel consumption (economy) – extra urban 6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l
Fuel consumption (economy) – combined 9.1 l/100 km
25.8 US mpg
31 UK mpg
11 km/l
CO2 emissions 217 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.6 sec
Acceleration 0 – 62 mph 7.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.2 sec
Maximum speed 240 km/h
149.13 mph
Weight-to-power ratio 7.5 kg/Hp, 133.3 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 193.8 Nm/tonne
Engine specs
Power 220 Hp @ 5000 rpm.
Power per litre 87.3 Hp/l
Torque 320 Nm @ 1500-4800 rpm.
236.02 lb.-ft. @ 1500-4800 rpm.
Engine layout Front, Transverse
Engine Model/Code B5254T3
Engine displacement 2521 cm3
153.84 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 93.2 mm
3.67 in.
Compression ratio 9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.8 l
6.13 US qt | 5.1 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.5 l
10.04 US qt | 8.36 UK qt

Space, Volume and weights
Kerb Weight 1651 kg
3639.83 lbs.
Max. weight 2090 kg
4607.66 lbs.
Max load 439 kg
967.83 lbs.
Trunk (boot) space – minimum 200 l
7.06 cu. ft.
Trunk (boot) space – maximum 404 l
14.27 cu. ft.
Fuel tank capacity 62 l
16.38 US gal | 13.64 UK gal
Dimensions
Length 4582 mm
180.39 in.
Width 1770 mm
69.69 in.
Width including mirrors 2025 mm
79.72 in.
Height 1400 mm
55.12 in.
Wheelbase 2640 mm
103.94 in.
Front track 1550 mm
61.02 in.
Rear (Back) track 1560 mm
61.42 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/50 R17
Wheel rims size 17
