| General information | |
|---|---|

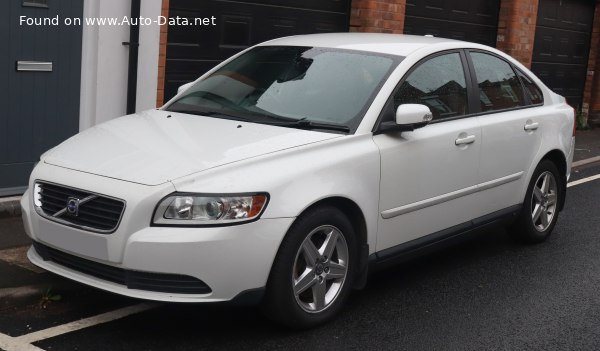

| Brand | Volvo |
| Model | S40 |
| Generation | S40 II (facelift 2007) |
| Modification (Engine) | 2.0 D3 (150 Hp) Geartronic |
| Start of production | 2011 year |
| End of production | 2012 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Performance specs | |
| Fuel consumption (economy) – urban | 7.6 l/100 km 30.9 US mpg 37.2 UK mpg 13.2 km/l |
| Fuel consumption (economy) – extra urban | 4.5 l/100 km 52.3 US mpg 62.8 UK mpg 22.2 km/l |
| Fuel consumption (economy) – combined | 5.6 l/100 km 42 US mpg 50.4 UK mpg 17.9 km/l |
| CO2 emissions | 149 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 9.6 sec |
| Acceleration 0 – 62 mph | 9.6 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 9.1 sec |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 10 kg/Hp, 100.1 Hp/tonne |
| Weight-to-torque ratio | 4.3 kg/Nm, 233.6 Nm/tonne |
| Engine specs | |
| Power | 150 Hp @ 3500 rpm. |
| Power per litre | 75.6 Hp/l |
| Torque | 350 Nm @ 1500-2750 rpm. 258.15 lb.-ft. @ 1500-2750 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | D5204T5 |
| Engine displacement | 1984 cm3 121.07 cu. in. |
| Number of cylinders | 5 |
| Engine configuration | Inline |
| Piston Stroke | 81 mm 3.19 in. |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Engine oil capacity | 5.9 l 6.23 US qt | 5.19 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 8.5 l 8.98 US qt | 7.48 UK qt |
| Engine systems | Particulate filter |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1498 kg 3302.52 lbs. |
| Max. weight | 2020 kg 4453.34 lbs. |
| Max load | 522 kg 1150.81 lbs. |
| Trunk (boot) space – minimum | 404 l 14.27 cu. ft. |
| Fuel tank capacity | 60 l 15.85 US gal | 13.2 UK gal |
| Dimensions | |
| Length | 4476 mm 176.22 in. |
| Width | 1770 mm 69.69 in. |
| Height | 1454 mm 57.24 in. |
| Wheelbase | 2640 mm 103.94 in. |
| Front track | 1548 mm 60.94 in. |
| Rear (Back) track | 1544 mm 60.79 in. |
| Minimum turning circle (turning diameter) | 11.1 m 36.42 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, automatic transmission |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
