Specifications: Volvo S40 (VS) 1.8 GDI (122 Hp) 1999, 2000

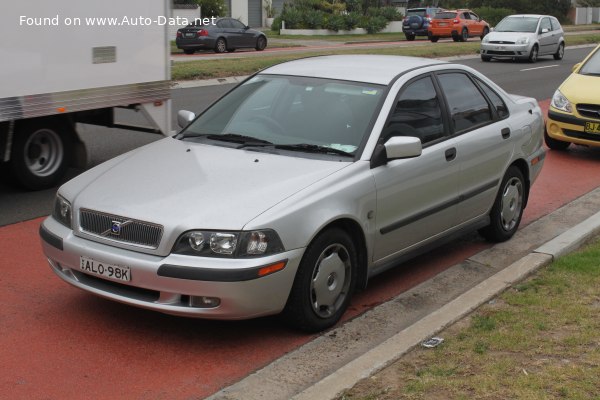

1996 Volvo S40 (VS) - Photo 1

Volvo S40 (VS) 1.8 GDI (122 Hp) – Full specifications
General information
Brand Volvo
Model S40
Generation S40 (VS)
Modification (Engine) 1.8 GDI (122 Hp)
Start of production 1999 year
End of production 2000 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 9.1 l/100 km
25.8 US mpg
31 UK mpg
11 km/l
Fuel consumption (economy) – extra urban 5.7 l/100 km
41.3 US mpg
49.6 UK mpg
17.5 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.5 sec
Acceleration 0 – 62 mph 10.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10 sec
Maximum speed 200 km/h
124.27 mph
Weight-to-power ratio 10.1 kg/Hp, 99.2 Hp/tonne
Weight-to-torque ratio 7.1 kg/Nm, 141.5 Nm/tonne
Engine specs
Power 122 Hp @ 5500 rpm.
Power per litre 66.5 Hp/l
Torque 174 Nm @ 3750 rpm.
128.34 lb.-ft. @ 3750 rpm.
Engine layout Front, Transverse
Engine Model/Code B4184SM
Engine displacement 1834 cm3
111.92 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 11.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1230 kg
2711.69 lbs.
Max. weight 1750 kg
3858.09 lbs.
Max load 520 kg
1146.4 lbs.
Trunk (boot) space – minimum 471 l
16.63 cu. ft.
Trunk (boot) space – maximum 853 l
30.12 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4516 mm
177.8 in.
Width 1716 mm
67.56 in.
Height 1422 mm
55.98 in.
Wheelbase 2562 mm
100.87 in.
Front track 1472 mm
57.95 in.
Rear (Back) track 1474 mm
58.03 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/65 R15
Wheel rims size 15
