Specifications: Volvo S60 2.4i 20V (170 Hp) 2000, 2001, 2002, 2003, 2004, 2005

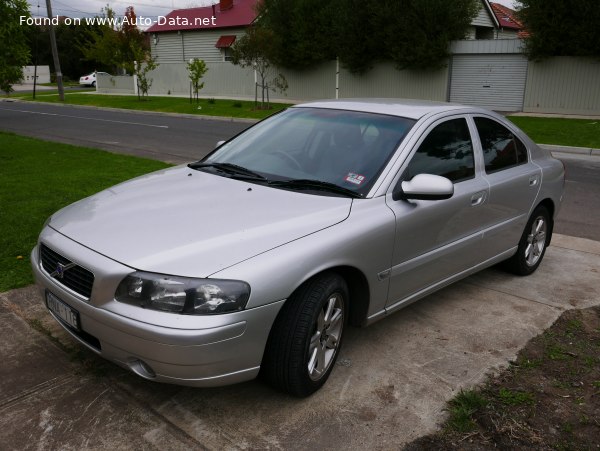

2001 Volvo S60 - Photo 1

Volvo S60 2.4i 20V (170 Hp) – Full specifications
General information
Brand Volvo
Model S60
Generation S60
Modification (Engine) 2.4i 20V (170 Hp)
Start of production 2000 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 12.3 l/100 km
19.1 US mpg
23 UK mpg
8.1 km/l
Fuel consumption (economy) – extra urban 6.9 l/100 km
34.1 US mpg
40.9 UK mpg
14.5 km/l
Fuel consumption (economy) – combined 8.9 l/100 km
26.4 US mpg
31.7 UK mpg
11.2 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.7 sec
Acceleration 0 – 62 mph 8.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.3 sec
Maximum speed 210 km/h
130.49 mph
Weight-to-power ratio 8.8 kg/Hp, 113.3 Hp/tonne
Weight-to-torque ratio 6.5 kg/Nm, 153.2 Nm/tonne
Engine specs
Power 170 Hp @ 5900 rpm.
Power per litre 69.8 Hp/l
Torque 230 Nm @ 4500 rpm.
169.64 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code B5244S
Engine displacement 2435 cm3
148.59 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.8 l
6.13 US qt | 5.1 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1501 kg
3309.14 lbs.
Max. weight 1980 kg
4365.15 lbs.
Max load 479 kg
1056.01 lbs.
Trunk (boot) space – minimum 424 l
14.97 cu. ft.
Trunk (boot) space – maximum 1034 l
36.52 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4576 mm
180.16 in.
Width 1804 mm
71.02 in.
Height 1428 mm
56.22 in.
Wheelbase 2715 mm
106.89 in.
Front track 1563 mm
61.54 in.
Rear (Back) track 1660 mm
65.35 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R16
Wheel rims size 16
