Specifications: Volvo S60 II 2.0 T (203 Hp) 2010, 2011

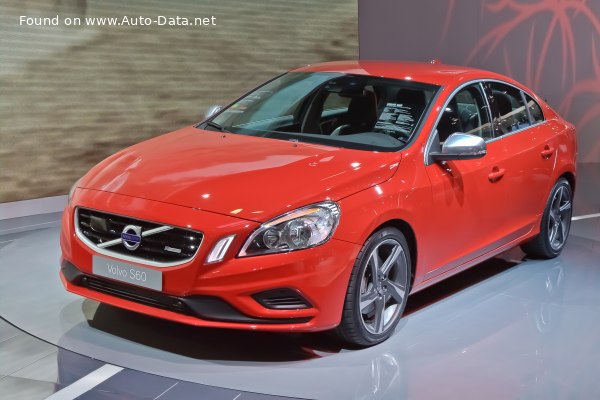

2011 Volvo S60 II - Photo 1

Volvo S60 II 2.0 T (203 Hp) – Full specifications
General information
Brand Volvo
Model S60
Generation S60 II
Modification (Engine) 2.0 T (203 Hp)
Start of production 2010 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 11.3 l/100 km
20.8 US mpg
25 UK mpg
8.8 km/l
Fuel consumption (economy) – extra urban 6.3 l/100 km
37.3 US mpg
44.8 UK mpg
15.9 km/l
Fuel consumption (economy) – combined 7.9 l/100 km
29.8 US mpg
35.8 UK mpg
12.7 km/l
CO2 emissions 189 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.7 sec
Acceleration 0 – 62 mph 7.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.3 sec
Emission standard Euro 5
Weight-to-power ratio 8.4 kg/Hp, 118.6 Hp/tonne
Weight-to-torque ratio 5.7 kg/Nm, 175.3 Nm/tonne
Engine specs
Power 203 Hp @ 6000 rpm.
Power per litre 101.6 Hp/l
Torque 300 Nm @ 1750-4000 rpm.
221.27 lb.-ft. @ 1750-4000 rpm.
Engine layout Front, Transverse
Engine Model/Code B4204T6
Engine displacement 1999 cm3
121.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 83.1 mm
3.27 in.
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.1 l
4.33 US qt | 3.61 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.5 l
11.1 US qt | 9.24 UK qt

Space, Volume and weights
Kerb Weight 1711 kg
3772.11 lbs.
Max. weight 2220 kg
4894.26 lbs.
Max load 509 kg
1122.15 lbs.
Trunk (boot) space – minimum 380 l
13.42 cu. ft.
Fuel tank capacity 67.5 l
17.83 US gal | 14.85 UK gal
Dimensions
Length 4628 mm
182.2 in.
Width 1865 mm
73.43 in.
Height 1484 mm
58.43 in.
Wheelbase 2776 mm
109.29 in.
Front track 1588 mm
62.52 in.
Rear (Back) track 1585 mm
62.4 in.
Minimum turning circle (turning diameter) 11.3 m
37.07 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 336 mm
Rear brakes Disc, 302 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/40 R18
Wheel rims size 8J x 18
