Specifications: Volvo S70 2.0 20V Turbo (226 Hp) Automatic 1996, 1997, 1998, 1999, 2000

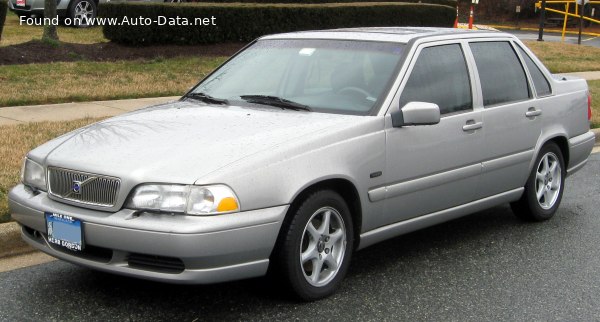

1997 Volvo S70 - Photo 1

Volvo S70 2.0 20V Turbo (226 Hp) Automatic – Full specifications
General information
Brand Volvo
Model S70
Generation S70
Modification (Engine) 2.0 20V Turbo (226 Hp) Automatic
Start of production 1996 year
End of production 2000 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 16.8 l/100 km
14 US mpg
16.8 UK mpg
6 km/l
Fuel consumption (economy) – extra urban 8.5 l/100 km
27.7 US mpg
33.2 UK mpg
11.8 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.8 sec
Acceleration 0 – 62 mph 7.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.4 sec
Maximum speed 230 km/h
142.92 mph
Weight-to-power ratio 6.5 kg/Hp, 154.8 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 212.3 Nm/tonne
Engine specs
Power 226 Hp @ 5700 rpm.
Power per litre 113.9 Hp/l
Torque 310 Nm @ 2700 rpm.
228.64 lb.-ft. @ 2700 rpm.
Engine layout Front, Transverse
Engine Model/Code B5204T3
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 77 mm
3.03 in.
Compression ratio 8.4:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger
Valvetrain DOHC
Engine oil capacity 5.8 l
6.13 US qt | 5.1 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1460 kg
3218.75 lbs.
Max. weight 1910 kg
4210.83 lbs.
Max load 450 kg
992.08 lbs.
Trunk (boot) space – minimum 470 l
16.6 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4720 mm
185.83 in.
Width 1760 mm
69.29 in.
Height 1400 mm
55.12 in.
Wheelbase 2660 mm
104.72 in.
Front track 1520 mm
59.84 in.
Rear (Back) track 1470 mm
57.87 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/50 R16
Wheel rims size 16
