Specifications: Volvo S80 2.9 24V (200 Hp) 1999, 2000, 2001

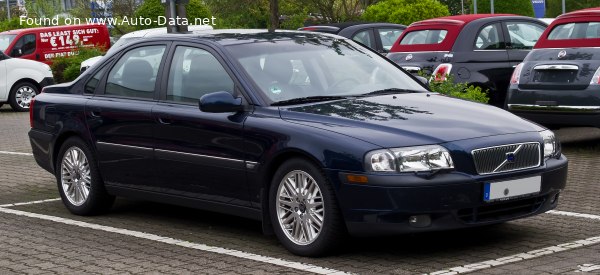

1999 Volvo S80 - Photo 1

Volvo S80 2.9 24V (200 Hp) – Full specifications
General information
Brand Volvo
Model S80
Generation S80
Modification (Engine) 2.9 24V (200 Hp)
Start of production 1999 year
End of production 2001 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 14.7 l/100 km
16 US mpg
19.2 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban 7.6 l/100 km
30.9 US mpg
37.2 UK mpg
13.2 km/l
Fuel consumption (economy) – combined 8 l/100 km
29.4 US mpg
35.3 UK mpg
12.5 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.2 sec
Acceleration 0 – 62 mph 8.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.8 sec
Maximum speed 235 km/h
146.02 mph
Weight-to-power ratio 7.7 kg/Hp, 130.7 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 183 Nm/tonne
Engine specs
Power 200 Hp @ 6000 rpm.
Power per litre 68.4 Hp/l
Torque 280 Nm @ 4200 rpm.
206.52 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code B6294S
Engine displacement 2922 cm3
178.31 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 6.9 l
7.29 US qt | 6.07 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.8 l
9.3 US qt | 7.74 UK qt

Space, Volume and weights
Kerb Weight 1530 kg
3373.07 lbs.
Max. weight 2200 kg
4850.17 lbs.
Max load 670 kg
1477.1 lbs.
Trunk (boot) space – minimum 440 l
15.54 cu. ft.
Trunk (boot) space – maximum 1106 l
39.06 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 4822 mm
189.84 in.
Width 1832 mm
72.13 in.
Height 1434 mm
56.46 in.
Wheelbase 2791 mm
109.88 in.
Front track 1562 mm
61.5 in.
Rear (Back) track 1560 mm
61.42 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/55R16
Wheel rims size 16
