Specifications: Volvo S80 (facelift 2003) 2.4 20V (170 Hp) 2003, 2004, 2005, 2006

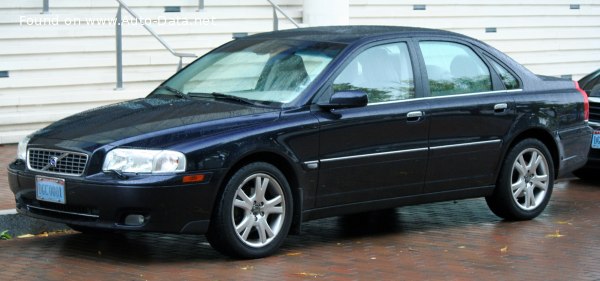

2003 Volvo S80 (facelift 2003) - Photo 1

Volvo S80 (facelift 2003) 2.4 20V (170 Hp) – Full specifications
General information
Brand Volvo
Model S80
Generation S80 (facelift 2003)
Modification (Engine) 2.4 20V (170 Hp)
Start of production 2003 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 12.6 l/100 km
18.7 US mpg
22.4 UK mpg
7.9 km/l
Fuel consumption (economy) – extra urban 7.1 l/100 km
33.1 US mpg
39.8 UK mpg
14.1 km/l
Fuel consumption (economy) – combined 9.1 l/100 km
25.8 US mpg
31 UK mpg
11 km/l
CO2 emissions 217 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9 sec
Acceleration 0 – 62 mph 9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.6 sec
Maximum speed 220 km/h
136.7 mph
Emission standard Euro 4
Weight-to-power ratio 8.9 kg/Hp, 111.8 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 147.9 Nm/tonne
Engine specs
Power 170 Hp @ 6000 rpm.
Power per litre 69.8 Hp/l
Torque 225 Nm @ 4500 rpm.
165.95 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code B5244S
Engine displacement 2435 cm3
148.59 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1521 kg
3353.23 lbs.
Max. weight 2020 kg
4453.34 lbs.
Max load 499 kg
1100.11 lbs.
Trunk (boot) space – minimum 460 l
16.24 cu. ft.
Trunk (boot) space – maximum 1126 l
39.76 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1800 kg
3968.32 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4822 mm
189.84 in.
Width 1832 mm
72.13 in.
Height 1452 mm
57.17 in.
Wheelbase 2791 mm
109.88 in.
Front track 1570 mm
61.81 in.
Rear (Back) track 1548 mm
60.94 in.
Front overhang 964 mm
37.95 in.
Rear overhang 1067 mm
42.01 in.
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/55 R16; 225/50 R17
Wheel rims size 7J x 16; 7J x 17
