Specifications: Volvo S80 II 2.5 T (200 Hp) Geartronic 2006, 2007, 2008, 2009

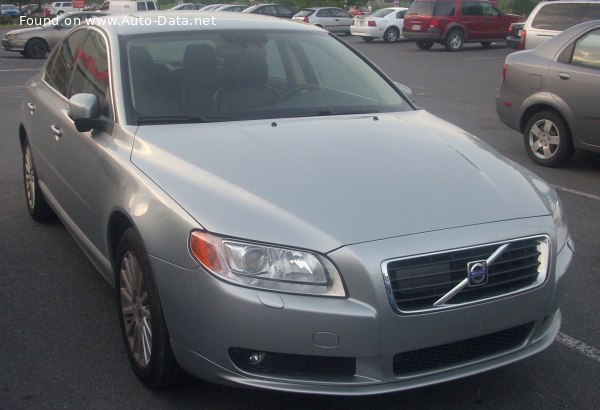

2007 Volvo S80 II - Photo 1

Volvo S80 II 2.5 T (200 Hp) Geartronic – Full specifications
General information
Brand Volvo
Model S80
Generation S80 II
Modification (Engine) 2.5 T (200 Hp) Geartronic
Start of production 2006 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 15.2 l/100 km
15.5 US mpg
18.6 UK mpg
6.6 km/l
Fuel consumption (economy) – extra urban 7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption (economy) – combined 10.2 l/100 km
23.1 US mpg
27.7 UK mpg
9.8 km/l
CO2 emissions 244 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8 sec
Acceleration 0 – 62 mph 8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.6 sec
Maximum speed 230 km/h
142.92 mph
Emission standard Euro 4
Weight-to-power ratio 7.7 kg/Hp, 129.9 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 194.8 Nm/tonne
Engine specs
Power 200 Hp @ 4800 rpm.
Power per litre 79.3 Hp/l
Torque 300 Nm @ 1500-4500 rpm.
221.27 lb.-ft. @ 1500-4500 rpm.
Engine layout Front, Transverse
Engine Model/Code B5254T6
Engine displacement 2521 cm3
153.84 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 93.2 mm
3.67 in.
Compression ratio 9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt

Space, Volume and weights
Kerb Weight 1540 kg
3395.12 lbs.
Trunk (boot) space – minimum 480 l
16.95 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1800 kg
3968.32 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4851 mm
190.98 in.
Width 1861 mm
73.27 in.
Width including mirrors 2106 mm
82.91 in.
Height 1493 mm
58.78 in.
Wheelbase 2835 mm
111.61 in.
Front track 1588 mm
62.52 in.
Rear (Back) track 1585 mm
62.4 in.
Front overhang 978 mm
38.5 in.
Rear overhang 1038 mm
40.87 in.
Drag coefficient (Cd) 0.29
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R16
Wheel rims size 16
