Specifications: Volvo V60 II Polestar 2.0 T8 TwEn (318 Hp) Plug-in Hybrid AWD Geartronic 2019, 2020, 2021

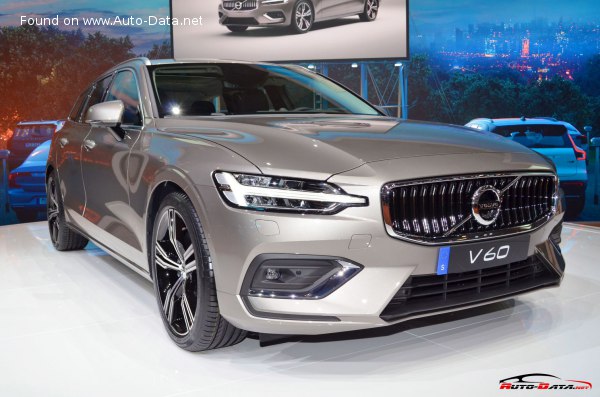

2019 Volvo V60 II - Photo 1

Volvo V60 II Polestar 2.0 T8 TwEn (318 Hp) Plug-in Hybrid AWD Geartronic – Full specifications
General information
Brand Volvo
Model V60
Generation V60 II
Modification (Engine) Polestar 2.0 T8 TwEn (318 Hp) Plug-in Hybrid AWD Geartronic
Start of production March, 2019 year
End of production September, 2021 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 2.7 l/100 km
87.1 US mpg
104.6 UK mpg
37 km/l
CO2 emissions (WLTP) 61 g/km
Fuel consumption (economy) – combined (NEDC) 2.1 l/100 km
112 US mpg
134.5 UK mpg
47.6 km/l
CO2 emissions (NEDC) 48 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 4.6 sec
Acceleration 0 – 62 mph 4.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.4 sec
Maximum speed 250 km/h
155.34 mph
100 km/h – 0 35 m
Emission standard Euro 6d-TEMP
Weight-to-power ratio 6.3 kg/Hp, 158.7 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 214.6 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 11.6 kWh
Battery voltage 400 V
Battery technology Lithium-ion (Li-Ion)
Battery location In the central tunnel
All-electric range (WLTP) 43 km
26.72 mi
All-electric range (NEDC) 48 km
29.83 mi
Average Energy consumption (WLTP) 16.8 kWh/100 km

27.04 kWh/100 mi
125 MPGe
6 km/kWh
3.7 mi/kWh
Average Energy consumption (NEDC) 17.2 kWh/100 km

27.68 kWh/100 mi
122 MPGe
5.8 km/kWh
3.6 mi/kWh
Max speed (electric) 125 km/h

77.67 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 87 Hp @ 7000 rpm.
Electric motor Torque 240 Nm @ 0-3000 rpm.

177.01 lb.-ft. @ 0-3000 rpm.
Electric motor location Rear axle, Transverse
Internal combustion engine specs
Power 318 Hp @ 6000 rpm.
Power per litre 161.5 Hp/l
Torque 430 Nm @ 4500 rpm.
317.15 lb.-ft. @ 4500 rpm.
Maximum engine speed 6000 rpm.
Engine layout Front, Transverse
Engine Model/Code B4204T48
Engine displacement 1969 cm3
120.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 93.2 mm
3.67 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharging and Supercharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2004 kg
4418.06 lbs.
Max. weight 2520 kg
5555.65 lbs.
Max load 516 kg
1137.59 lbs.
Trunk (boot) space – minimum 529 l
18.68 cu. ft.
Trunk (boot) space – maximum 1441 l
50.89 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4761 mm
187.44 in.
Width 1850 mm
72.83 in.
Width with mirrors folded 1916 mm
75.43 in.
Width including mirrors 2040 mm
80.31 in.
Height 1432 mm
56.38 in.
Wheelbase 2872 mm
113.07 in.
Front track 1610 mm
63.39 in.
Rear (Back) track 1610 mm
63.39 in.
Front overhang 848 mm
33.39 in.
Rear overhang 1041 mm
40.98 in.
Ride height (ground clearance) 142 mm
5.59 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.7 m
38.39 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) permanently drives the front wheels of the vehicle, the electric motor drives the rear wheels of the vehicle, capable of running in full electric mode, only by the Internal combustion engine (ICE) or in mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Geartronic
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Transverse stabilizer, Leaf spring
Front brakes Ventilated discs, 345×30 mm
Rear brakes Ventilated discs, 320×20 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/40 R19
Wheel rims size 8J x 19
