Specifications: Volvo V90 (facelift 2020) 2.0 B4 Diesel (197 Hp) Mild Hybrid AWD Geartronic 2020, 2021, 2022, 2023, 2024

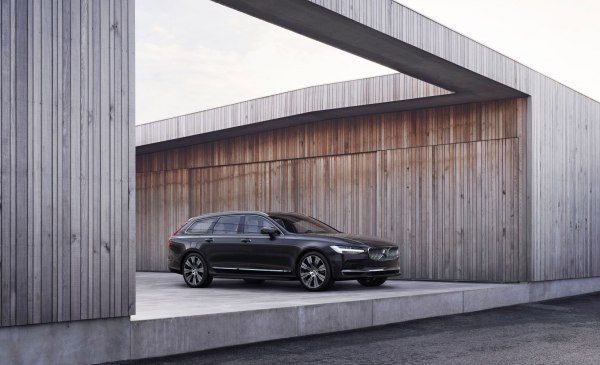

2021 Volvo V90 (facelift 2020) - Photo 1

Volvo V90 (facelift 2020) 2.0 B4 Diesel (197 Hp) Mild Hybrid AWD Geartronic – Full specifications
General information
Brand Volvo
Model V90
Generation V90 (facelift 2020)
Modification (Engine) 2.0 B4 Diesel (197 Hp) Mild Hybrid AWD Geartronic
Start of production 2020 year
End of production 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 7.3-8.3 l/100 km
32.2 – 28.3 US mpg
38.7 – 34 UK mpg
13.7 – 12 km/l
Fuel consumption at Medium speed (WLTP) 6.4-7.1 l/100 km
36.8 – 33.1 US mpg
44.1 – 39.8 UK mpg
15.6 – 14.1 km/l
Fuel consumption at high speed (WLTP) 5.1-5.7 l/100 km
46.1 – 41.3 US mpg
55.4 – 49.6 UK mpg
19.6 – 17.5 km/l
Fuel consumption at very high speed (WLTP) 5.7-6.6 l/100 km
41.3 – 35.6 US mpg
49.6 – 42.8 UK mpg
17.5 – 15.2 km/l
Combined fuel consumption (WLTP) 5.9-6.6 l/100 km
39.9 – 35.6 US mpg
47.9 – 42.8 UK mpg
16.9 – 15.2 km/l
CO2 emissions (WLTP) 154-174 g/km
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 6.2-6.3 l/100 km
37.9 – 37.3 US mpg
45.6 – 44.8 UK mpg
16.1 – 15.9 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 4.6-4.7 l/100 km
51.1 – 50 US mpg
61.4 – 60.1 UK mpg
21.7 – 21.3 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 5.2-5.3 l/100 km
45.2 – 44.4 US mpg
54.3 – 53.3 UK mpg
19.2 – 18.9 km/l
CO2 emissions (NEDC, WLTP equivalent) 136-140 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 8.7 sec
Acceleration 0 – 62 mph 8.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.3 sec
Maximum speed 180 km/h, Electronically limited
111.85 mph
100 km/h – 0 35 m
Emission standard Euro 6d
Weight-to-power ratio 9.6 kg/Hp, 104.5 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 222.8 Nm/tonne
Electric cars and hybrids specs
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Electric motor 1
Electric motor power 14 Hp
Electric motor Torque 40 Nm

29.5 lb.-ft.
Internal combustion engine specs
Power 197 Hp @ 4000 rpm.
Power per litre 100.1 Hp/l
Torque 420 Nm @ 1750-2750 rpm.
309.78 lb.-ft. @ 1750-2750 rpm.
Maximum engine speed 5000 rpm.
Engine layout Front, Transverse
Engine Model/Code D420T8
Engine displacement 1969 cm3
120.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 93.2 mm
3.67 in.
Compression ratio 15.8:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1885 kg
4155.71 lbs.
Max. weight 2480 kg
5467.46 lbs.
Max load 595 kg
1311.75 lbs.
Trunk (boot) space – minimum 560 l
19.78 cu. ft.
Trunk (boot) space – maximum 1526 l
53.89 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
AdBlue tank 11.5 l
3.04 US gal | 2.53 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2200 kg
4850.17 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4945 mm
194.69 in.
Width 1879 mm
73.98 in.
Width with mirrors folded 1895 mm
74.61 in.
Width including mirrors 2019 mm
79.49 in.
Height 1472 mm
57.95 in.
Wheelbase 2941 mm
115.79 in.
Front track 1617-1628 mm
63.66 – 64.09 in.
Rear (Back) track 1618-1629 mm
63.7 – 64.13 in.
Front overhang 879 mm
34.61 in.
Rear overhang 1125 mm
44.29 in.
Ride height (ground clearance) 156 mm
6.14 in.
Drag coefficient (Cd) 0.30-0.33
Minimum turning circle (turning diameter) 11.8-12.2 m
38.71 – 40.03 ft.
Wading depth 250 mm
9.84 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the front wheels of the vehicle, capable of running only in mixed mode, and if necessary through the electrically or mechanically controlled clutch, the rear wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Geartronic
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Transverse stabilizer, Leaf spring, Air Suspension – Optional
Front brakes Ventilated discs, 345×30 mm
Rear brakes Ventilated discs, 320×20 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/45 R18; 255/40 R19; 255/35 R20; 245/35 R21
Wheel rims size 8J x 18; 8.5J x 19; 8.5J x 20; 8.5J x 21
