Specifications: Volvo XC60 I (2013 facelift) 2.0 D3 (150 Hp) Automatic 2015, 2016, 2017

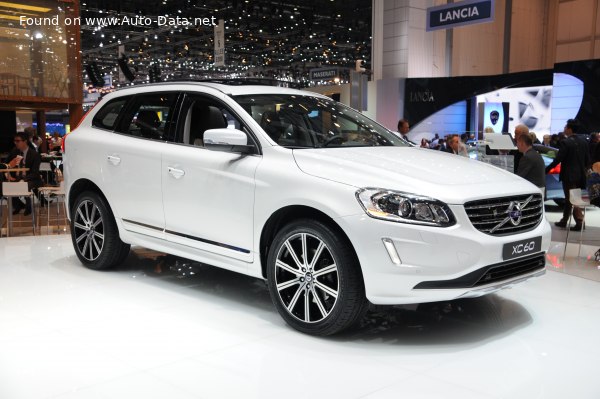

2014 Volvo XC60 I (2013 facelift) - Photo 1

Volvo XC60 I (2013 facelift) 2.0 D3 (150 Hp) Automatic – Full specifications
General information
Brand Volvo
Model XC60
Generation XC60 I (2013 facelift)
Modification (Engine) 2.0 D3 (150 Hp) Automatic
Start of production 2015 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
CO2 emissions 124 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10 sec
Acceleration 0 – 62 mph 10 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.5 sec
Maximum speed 190 km/h
118.06 mph
100 km/h – 0 39 m
Weight-to-power ratio 12.2 kg/Hp, 81.8 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 190.8 Nm/tonne
Engine specs
Power 150 Hp @ 4250 rpm.
Power per litre 76.2 Hp/l
Torque 350 Nm @ 1500-2500 rpm.
258.15 lb.-ft. @ 1500-2500 rpm.
Maximum engine speed 5000 rpm.
Engine layout Front, Transverse
Engine Model/Code D4204T4
Engine displacement 1969 cm3
120.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 93.2 mm
3.67 in.
Compression ratio 15.8:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1834-1921 kg
4043.28 – 4235.08 lbs.
Max. weight 2390-2505 kg
5269.05 – 5522.58 lbs.
Max load 556-584 kg
1225.77 – 1287.5 lbs.
Trunk (boot) space – minimum 495 l
17.48 cu. ft.
Trunk (boot) space – maximum 1455 l
51.38 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 1800 kg
3968.32 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4644 mm
182.83 in.
Width 1891 mm
74.45 in.
Width including mirrors 2120 mm
83.46 in.
Height 1713 mm
67.44 in.
Wheelbase 2774 mm
109.21 in.
Front track 1632 mm
64.25 in.
Rear (Back) track 1586 mm
62.44 in.
Ride height (ground clearance) 230 mm
9.06 in.
Drag coefficient (Cd) 0.35
Minimum turning circle (turning diameter) 12.1 – 12.6 m
39.7 – 41.34 ft.
Approach angle 20.0°
Departure angle 26.9°
Ramp-over (brakeover) angle 22.1°
Wading depth 350 mm
13.78 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
