Specifications: Volvo XC70 I 2.5 T (210 Hp) AWD Automatic 2002, 2003, 2004

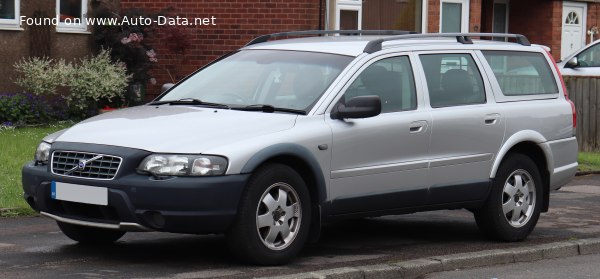

2000 Volvo XC70 I - Photo 1

Volvo XC70 I 2.5 T (210 Hp) AWD Automatic – Full specifications
General information
Brand Volvo
Model XC70
Generation XC70 I
Modification (Engine) 2.5 T (210 Hp) AWD Automatic
Start of production 2002 year
End of production 2004 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate), Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 15.6 l/100 km
15.1 US mpg
18.1 UK mpg
6.4 km/l
Fuel consumption (economy) – extra urban 9.2 l/100 km
25.6 US mpg
30.7 UK mpg
10.9 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.5 sec
Acceleration 0 – 62 mph 8.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.1 sec
Maximum speed 220 km/h
136.7 mph
Weight-to-power ratio 8.3 kg/Hp, 120.6 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 183.7 Nm/tonne
Engine specs
Power 210 Hp @ 5000 rpm.
Power per litre 83.3 Hp/l
Torque 320 Nm @ 1500 rpm.
236.02 lb.-ft. @ 1500 rpm.
Engine layout Front, Transverse
Engine Model/Code B5254T2
Engine displacement 2521 cm3
153.84 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 93.2 mm
3.67 in.
Compression ratio 9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt

Space, Volume and weights
Kerb Weight 1742 kg
3840.45 lbs.
Max. weight 2220 kg
4894.26 lbs.
Max load 478 kg
1053.81 lbs.
Trunk (boot) space – minimum 485 l
17.13 cu. ft.
Trunk (boot) space – maximum 1641 l
57.95 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Dimensions
Length 4733 mm
186.34 in.
Width 1860 mm
73.23 in.
Height 1562 mm
61.5 in.
Wheelbase 2763 mm
108.78 in.
Front track 1611 mm
63.43 in.
Rear (Back) track 1548 mm
60.94 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/65 R16
Wheel rims size 16
