Specifications: Volvo XC90 II (facelift 2024) 2.0 T8 (455 Hp) Plug-in Hybrid AWD Automatic 2024, 2025

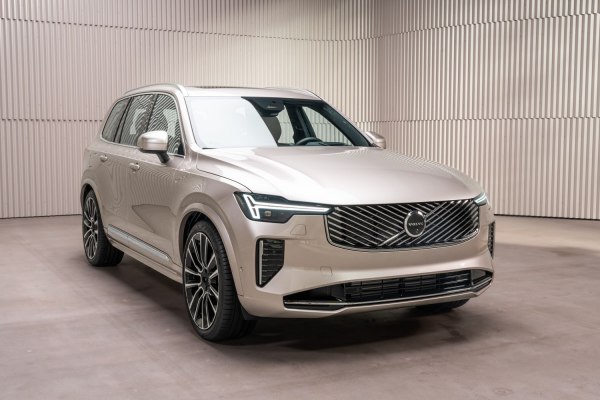

2025 Volvo XC90 II (facelift 2024) - Photo 1

Volvo XC90 II (facelift 2024) 2.0 T8 (455 Hp) Plug-in Hybrid AWD Automatic – Full specifications
General information
Brand Volvo
Model XC90
Generation XC90 II (facelift 2024)
Modification (Engine) 2.0 T8 (455 Hp) Plug-in Hybrid AWD Automatic
Start of production September, 2024 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type SUV
Seats 7
Doors 5
Performance specs
Combined fuel consumption (WLTP) 1.2-1.6 l/100 km
196 – 147 US mpg
235.4 – 176.6 UK mpg
83.3 – 62.5 km/l
CO2 emissions (WLTP) 30-36 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 5.4 sec
Acceleration 0 – 62 mph 5.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.1 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 6e
Weight-to-power ratio 4.9 kg/Hp, 204.8 Hp/tonne
Weight-to-torque ratio 3.1 kg/Nm, 319.1 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 18.8 kWh
Net (usable) battery capacity 14.7 kWh
Battery voltage 400 V
Battery technology Lithium-ion (Li-Ion)
Battery location In the central tunnel
All-electric range (WLTP) 63-71 km
39.15 – 44.12 mi
Average Energy consumption (WLTP) 19.4-21.4 kWh/100 km

31.22 – 34.44 kWh/100 mi
108 – 98 MPGe
5.2 – 4.7 km/kWh
3.2 – 2.9 mi/kWh
Max speed (electric) 140 km/h

86.99 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 145 Hp @ 15900 rpm.
Electric motor Torque 309 Nm @ 0-3280 rpm.

227.91 lb.-ft. @ 0-3280 rpm.
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 455 Hp
System torque 709 Nm
522.93 lb.-ft.
Internal combustion engine specs
Power 310 Hp @ 6000 rpm.
Power per litre 157.4 Hp/l
Torque 400 Nm @ 3000-4800 rpm.
295.02 lb.-ft. @ 3000-4800 rpm.
Engine layout Front, Transverse
Engine Model/Code B4204T56
Engine displacement 1969 cm3
120.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2222 kg
4898.67 lbs.
Max. weight 2950 kg
6503.64 lbs.
Max load 728 kg
1604.97 lbs.
Trunk (boot) space – minimum 262 l
9.25 cu. ft.
Trunk (boot) space – maximum 1816 l
64.13 cu. ft.
Fuel tank capacity 71 l
18.76 US gal | 15.62 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2400 kg
5291.09 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 110 kg
242.51 lbs.
Dimensions
Length 4953 mm
195 in.
Width 1923 mm
75.71 in.
Width including mirrors 2140 mm
84.25 in.
Height 1767-1771 mm
69.57 – 69.72 in.
Wheelbase 2984 mm
117.48 in.
Front overhang 890 mm
35.04 in.
Rear overhang 1079 mm
42.48 in.
Ride height (ground clearance) 205-216 mm
8.07 – 8.5 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) permanently drives the front wheels of the vehicle, the electric motor drives the rear wheels of the vehicle, capable of running in full electric mode, only by the Internal combustion engine (ICE) or in mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 275/45 R20; 275/40 R21; 275/35 R22
Wheel rims size 20; 21; 22
